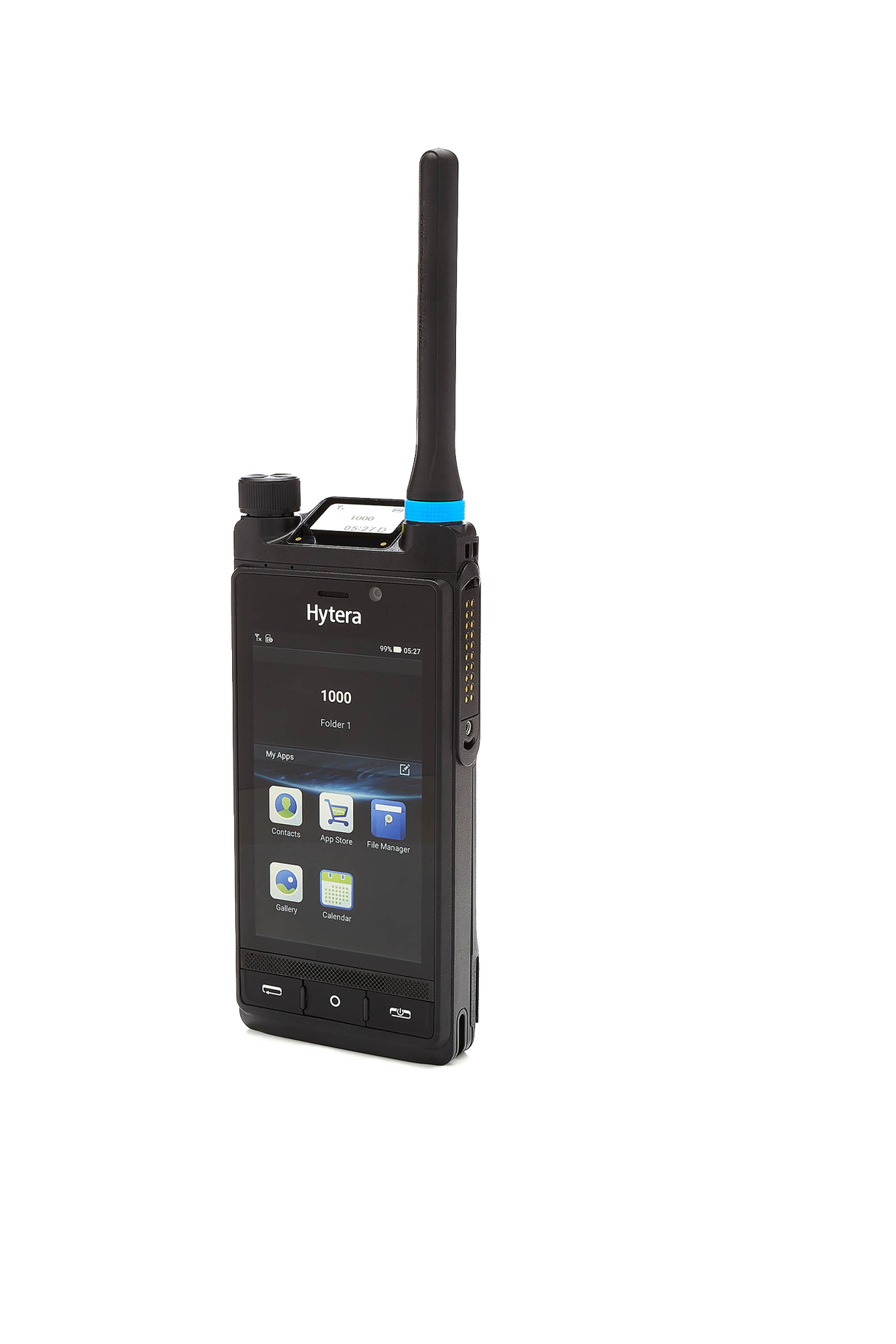

PTC760

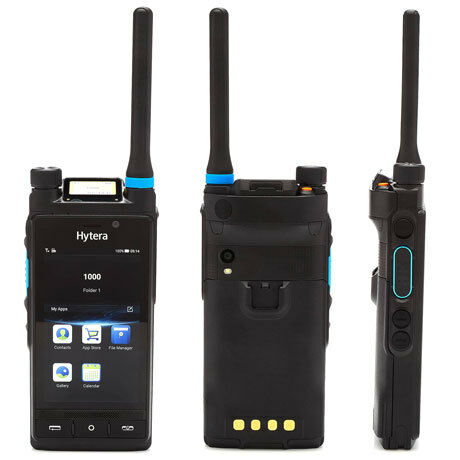

Highlights
Broadband and Narrowband Converged
Broadband data is supported by an LTE network (private or public), while the narrowband requirement is delivered by a private PMR network (TETRA).
Multiple Security Assurances
The device supports authentication and both software and hardware encryption to prevent voice and data theft.
Situational Awareness
Advanced audio technology supported by in-built GPS positioning and front and rear cameras supporting 4K HD video for information gathering.
Rugged and Reliable
Dust and waterproof, rated IP67, with scratch and shatter-resistant Gorilla® Glass 3.
Rapid Charging
The latest smart battery technology delivers fast charge, 3 times faster than regular batteries. With 80% of the battery capacity charged within 30 minutes.
SmartKey
Allows the user to quickly toggle between widgets and applications on the device screen.
Functions
Accessory Options
Optimise with high capacity power and charger options available to boost your device.
Dual Bluetooth
Bluetooth V4.2 delivers an enhanced data rate with low energy consumption through a secure connection for wireless connectivity.
Flexible Applications
Utilise the Hytera app development program (ADP), or push APK files to your device to improve your efficiency. You can even utilise the onboard applications and sensors provided.
OTAP
The Hytera Mobile Device Management (MDM) client can track device activity, push apps and updates over the air to your advanced radio fleet.
Roaming
Traverse networks, moving from LTE to TETRA and back seamlessly to ensure you always remain connected. Dual SIM slots as standard.
Wi-Fi
Wireless connectivity for MDM programming and all manner of data applications, even operating as a portable hotspot.
Accessories for PTC760
Included as standard with PTC760
Audio
Maintenance
Antenna
Charger & Power
Carrying
Systems that work with PTC760
TETRA Systems
LTE-PMR Convergence Solution
TETRA Applications
Technical Specifications
Standard Functions and Frequency Range
- Frequency Range
- UHF1: 350-470 MHz
- LTE Band
- 3GPP LTE FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28 TDD-LTE: B38/B39/B40/B41
- CDMA
- CDMA 1xRTT BC0 CDMA2000 1xEV-DO BC0
- GSM
- 850/900/1800/1900MHz
- Wi-Fi
- 802.11 b/g/n, 2.4GHz
- NFC
- 13.56MHz
- Dual BT
- V4.2 LE+EDR
- Positioning System
- GPS, BDS, GLONASS
- Sensors
- Proximity Sensor Ambient Light Sensor 6-axis E-Compass Barometer Gyroscope Accelerometer
General
- Dimensions(H×W×D)
- 139.5 x 68 x 25.3mm
- Weight
- 378g(with antenna & battery)
- Operating System
- Android 7.0
- Processor
- 8-core, 2.0GHz
- Memory
- Memory(Narrow Band)：Expandable to 16GB with Micro SD card Memory(Broad Band)：RAM:3GB; ROM:32GB eMMC; Expandable to 128GB with Micro SD card
- Sensors
- Proximity Sensor Ambient Light Sensor 6-axis E-Compass Barometer Gyroscope Accelerometer
- Peripheral Interface
- 20PIN Accessory/Charging Port
- Display
- Top Screen：1.0” 128x88 Color: black & white Main Screen：4.0" 1024x600, Color depth: 24bit; Capacitive, Touch screen, Gloves Proofed
- Card Slots
- 2x Micro SIM card slots 1x Narrowband Micro SD card slot 1x Broadband Micro SD card slot
- Camera
- Front & Rear 13MP, Auto Focus
- Operating Voltage
- 7.6V(Rated)
- Battery
- Standard:2900 mAh Li-polymer Optional:4000 mAh
Transceiver
- Channel Spacing
- 25kHz
- TX Power
- 1.8W(Class 3L)&1W(Class 4)
- RX Sensitivity
- Static:≤-116dBm(-117dBm typ.); Dynamic:≤-106dBm(-109dBm typ.)
- Audio Power Output
- 2W
Video and Imaging
- Video File Types
- 3GPP(.3gp),MPEG-4(.mp4),QuickTime(.mov),WEBM(.webm),Windows Media(.asf,.wmv),RealMedia(.rmvb,.rm),MPEG-PS(.mpg,.mpeg),MPEG-TS(.ts),AVI(.avi),Matroska(.mkv)
- Image File Types
- JPEG(.jpg),GIF(.gif),PNG(.png),BMP(.bmp)
- Video Recording Quality
- Front Camera: 1080P HD up to 30 frames per second(fps) Rear Camera: 4K HD
- Watermark
- Video and imaging
Audio
- Input
- Multi-mic Noise Reduction, Wind Noise Suppression, Echo Cancellation
- File Types
- MP3(.mp3),WAV(.wav),3GPP(.3gp),MPEG-4(.mp4,.m4a),ATDS raw AAC(.aac),MPEG-TS(.ts),FLAC(.flac),MIDI(.midi,.xmf,.mxmf),RTTTL/RTX(.rtttl,.rtx),OTA(.ota),iMelody(.imy),Ogg(.ogg),Matroska(.mka),QCELP(.qcp),RealMedia(.ra),Windows Media(.wma),AC3(.ac3)
Environmental
- Operating Temperature
- -20℃ ~ +60℃
- Storage Temperature
- -30℃~ +80℃
- ESD
- IEC 61000-4-2 Level 3
- Dust & Water Protection
- IEC 60529-IP67(Im,0.5h)
- Humidity
- Per MIL-STD 810,≤ +65℃,95%RH
- Vibration, Drop&Shock
- MIL-STD-810 G
