HP79XEx IIC
HP79XEx IIC Intrinsically Safe DMR Portable Two-way Radio
HP79XEx IIC Intrinsically Safe DMR Portable Two-way Radio features a secure design, durable body, and advanced ergonomics. HP79XEx IIC provides clear and loud voice quality, extended working hours, and long-distance communication capabilities. Compliant with stringent IECEx explosion-proof standards, it holds IECEx international certifications. This design meets global explosion-proof certification standards, providing reliable safe communication for industries such as oil and gas, fire rescue, airports, manufacturing, and more.

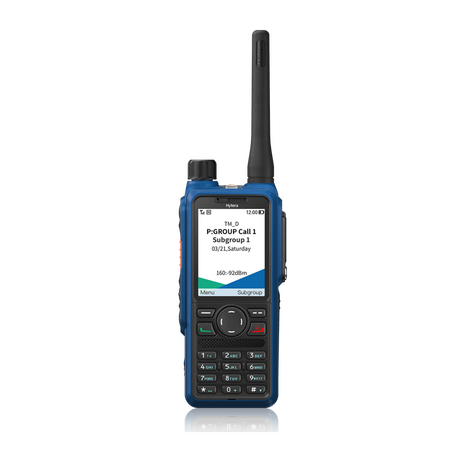

Highlights
Channel/Volume Knob
2.4-Inch Display
Speaker
Microphone
Emergency Button
PTT Key
Functions
Authoritative IS Certifications
Through the rigorous testing of the globally recognized certification organizations, HP79XEx IIC obtains the IECEx/ATEX certificates, to reduce the risk of accidents, and ensure the safety of users and operators.
Clear and Loud Voice
With a 2W high-power speaker, the audio is louder. Integrated with AI intelligent noise reduction algorithm, automatic gain control (AGC), and other multiple audio technologies, HP79XEx IIC isolates kinds of noisy backgrounds, and addresses weak sound issues, to make critical voice information clearer and more reliable.
Extended Coverage
2W TX power extends the coverage area. Critical information can be received even in remote areas, reducing coverage blind spots, enabling rapid response, and collaborating in the timely handling of critical missions.
Easy to Use
User-friendly UI design, upgraded 2.4-inch screen, and multifunctional buttons, along with large LED indicator lights, providing a comfortable viewing experience, convenient operation, and doubled efficiency.
Rocksolid & Longlasting Battery
Designed with a high-grade battery protection board and battery lock, HP79XEx IIC avoid potential sparks even dropped accidentally, and ensures the safe use of the battery in hazardous circumstances. Additionally, HP79XEx IIC prompt on screen with flashing red LED indicator, effectively addressing the security risks of non-original batteries. It also adopts a large-capacity intelligent IS battery and power-saving technology design to reduce standby power consumption, meeting the need for extended communication, and allowing seamless shift changes.
Versatile Connectivity
Supports Bluetooth 5.3, WLAN, and NFC functionalities, allowing for the expansion of third-party application solutions, enabling remote and tag management of radios, ensuring efficient terminal management.
Wider range of operation temperature (in Ex area)
Thanks to new explosion-proof materials and advanced mechanical design, the HP79XEx IIC is built to work under temperatures from –25°C to 60°C in explosion-prone areas. With stable and even heat dissipation, the HP79XEx IIC is engineered to work in extreme conditions, bringing extra safety and efficiency to everyday work.
Built for Personnel Security
Optional standalone mode settings. In case of danger, the HP79XEx IIC will activate the man-down alarm function, precisely sending location details to protect the personal safety of team members.
Accessories for HP79XEx IIC
Included as standard with HP79XEx IIC
Carrying
Charger & Power
Audio
Maintenance
Other
Battery
Systems that work with HP79XEx IIC
DMR Systems
Technical Specifications
General
- Frequency Range
- VHF: 136-174MHz
- U9: 400-480Mhz
- Channel Capacity
- 1024
- Zone Capacity
- 64
- Dimensions(H×W×D) mm
- 130mm X 55mm X 37mm
- Weight
- 390g ±5g
- Display
- LCD,320x240 pixel, 262000 colors, 2.4 inch
- Battery
- Standard: 2150 mAh lIC intrinsically safe Li battery (Typical)
- Battery Life(5/5/90 Duty Cycle, High TX Power)
- 24h (GNSS OFF); 21h (GNSS ON)
- Operating Voltage
- 7.4V (rated)
Environmental
- Dust & Water Protection
- IP68; IP6X(Explosion-proof standard certification）
- Humidity
- MIL-STD-810H
- Vibration, Drop & Shock
- MIL-STD-810H
- RX Sensitivity
- Tracking: ≦-165 dBm; Acquisition: ≤-149 dBm
