MT680 Plus S

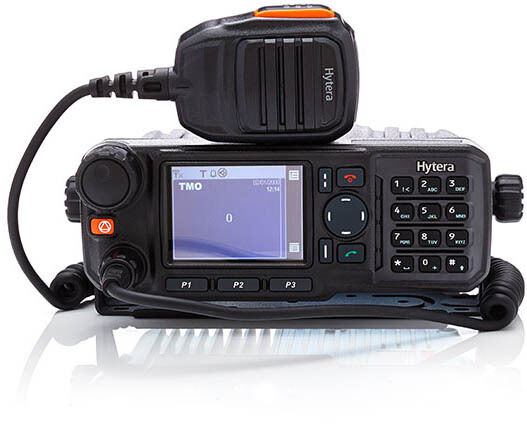

Highlights
Versatile Operation
Besides Direct Mode (DMO) and Trunked Radio Mode (TMO), the MT680 Plus S supports ETSI DMO Gateway and ETSI type 1A DMO Repeater operation, boosting the area of operation for other TETRA users
Clear Communication
The MT680 Plus S features an advanced audio chip with the latest noise cancelling capability. Users working in noisy environments therefore benefit from excellent audio quality
User-friendly Design

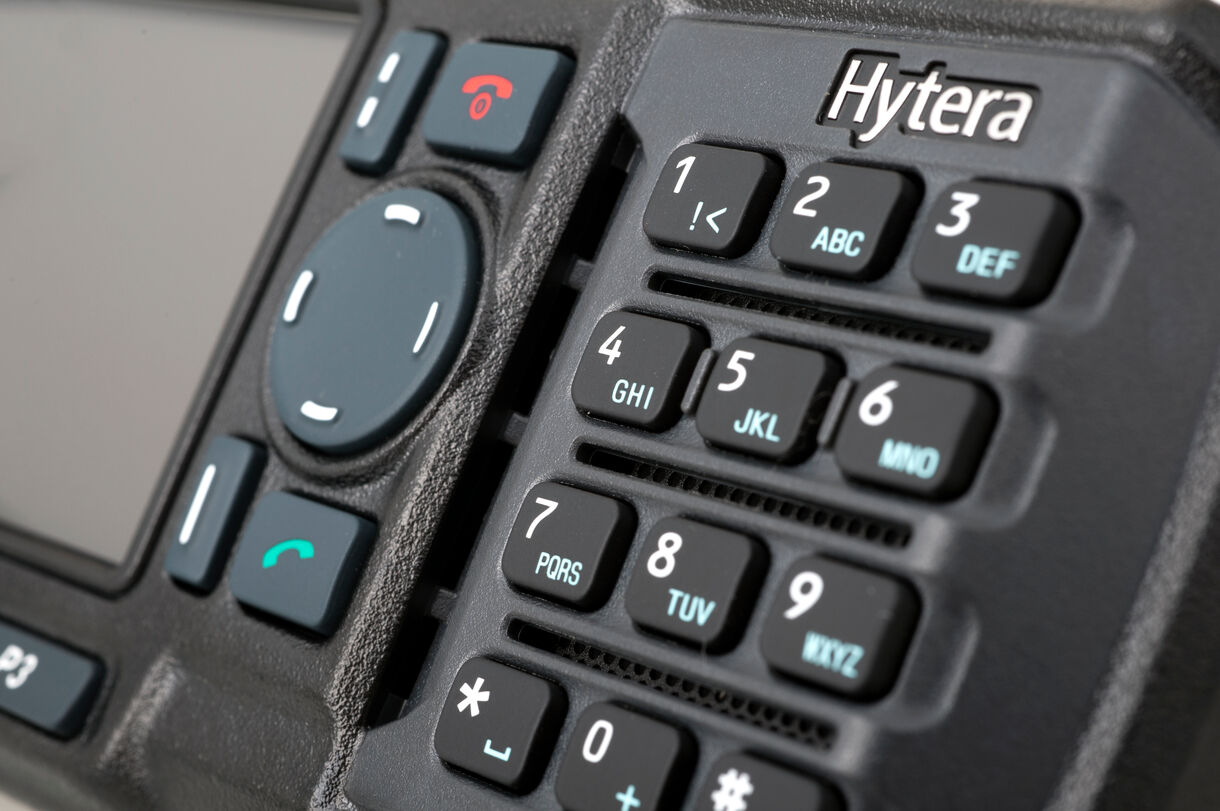

The large TFT LCD display allows trouble-free viewing even with bright sunlight. The intuitive interface and tailored menu structure ensures that operating and handling communications is a breeze
Flexible Installation
You can install the operating head wherever the control elements are easily accessible. The front panel is dust-proof and water-proof (IP67), so it can be installed practically anywhere
Voice and Data Services
Thanks to the integrated GPS function precise positioning is available, as well as many other voice and data services according to the TETRA standard. Optional encryption and the recording feature offer additional important functionality
Functions
Status Remote Control
Control the radio remotely by sending it specific status messages.
Passwords, PINs and Encryption
Protect your workforce against evesdropping or "man in the middle" attacks by applying a PIN/PUK at switch on, protect the programming with a password and use Air Interface Encryption and End to End Encryption.
Gateway
Use the Gateway function to give coverage in areas where you have little or no coverage and connect your DMO radios to the network via the Gateway.
Full Call Out
Use the radio as a pager with integrated resource management function.
OTAP (Over The Air Programming)
Make adjustments to the existing programming of the radio using the free OTAP application.
RF Power
High 3W transmit power to improve coverage without the need for an additional license.
Accessories for MT680 Plus S
Included as standard with MT680 Plus S
Antenna
Other
Maintenance
Audio
Charger & Power
Installation
Systems that work with MT680 Plus S
TETRA Applications
TETRA Systems
Technical Specifications
General
- Frequency Range
- F4: 405 - 475MHz
- F5: 806-870 MHz
- Dimensions(W×H×D)
- 70 x 184 x 201 (mm)
- Weight
- 1853g
- Display
- LCD Color 240 x 320 pixels Up to 260000 colors
- Keypad
- Available both on main unit and keypad microphone
- Programmable Buttons
- 25
Environmental Specifications
- Dust & Water Intrusion
- IP54 Standard (radio unit) IP67 Standard (control unit)
Voice calls
- Individual, Hooking
- YES
- Individual, non-Hooking
- YES
- Group, with Late Entry, TPID
- YES
- Notification Talkgroups
- YES
- Priority calls (group/indiv, HD/FD), 15 levels incl pre-emption
- YES
- via Repeater
- YES
- Repeater Type 1A, single call single frequency
- YES
- Repeater SDS and Status
- YES
- Repeater Air Interface Encryption DMO-2C
- YES
- Repeater Call Initiate and Participate
- YES
- via Gateway
- YES
- Gateway, group & Indiv voice calls from TMO to DMO and vv.
- YES
- Gateway pre-emption TMO to DMO and DMO to TMO
- YES
- Gateway SDS messaging TMO to DMO and vv.
- YES
- Gateway DGNA
- YES
- Gateway Emergency calls
- YES
- Full Duplex
- YES
- Telephony: PSTN, PABX, DTMF
- YES
- Phonebook restricted individual calls
- YES
- Broadcast
- YES
- Open group Call (DMO)
- YES
- DGNA
- YES
- DGNA "drag and drop"
- YES
- CAD (Call Authorised by Dispatcher)
- YES
- Standard DMO and TMO Folders
- YES
- Favourite folder (TMO & DMO mixed)
- YES
- Audio Profiles (Silent, Normal, Loud etc)
- YES
User Safety and convenience
- Lone Worker
- YES
- Man Down
- YES
- (Silent) Emergency call to Selected group
- YES
- Emergency Status
- YES
- Emergency Protect mode
- YES
- Emergency call via gateway or repeater
- YES
- Tactical Emergency (to predefined group)
- YES
- GPS, LIP and NMEA
- YES
- GPS Triggers (distance, time, status, Emergency, TX-I etc)
- YES
- GPS Overspeed alarm
- YES
- GPS via repeater or gateway
- YES
- GPS Route Trace (display distance and relative speed)
- YES
- Ambiance Listening
- YES
- Bluetooth
- YES
- Vibrate
- YES
- RUA (Radio User Aliasing)
- YES
- Low battery Alert
- YES
- No Coverage' Alert
- YES
- CallOut (Full)
- YES
- Configurable Keypad Lock
- YES
- Transmit Inhibit (TX-I) (with status)
- YES
- Group Change Voice broadcast
- YES
- Multiple Menu languages
- YES
- Time Synchronisation with GPS or Network time
- YES
- Customised Menu items
- YES
- Startup Logo & Screensaver Logo
- YES
- Customisable Alert tones
- YES
- System interface connector: GPIO, Ext Alarm, Ignition sense
- YES
- System interface connector: Public Address, Independant audio out
- YES
Data
- Send & Receive Status, shortcut keys
- YES
- Send & Receive SDS, shortcut keys
- YES
- SDS-1, 2, 3, 4, TL
- YES
- Flash SDS / Status, with Timer, initiate and/or receive
- YES
- Long text message (TMO)
- NO
- Status Remote Control
- YES
- Short Data Template (TMO)
- YES
- Work Order (TMO)
- YES
- OTAP(Over The Air Programming) (TMO)
- YES
- Packet Data, Single Slot (TMO)
- YES
- Packet Data, Multi Slot (TMO)
- YES
- Packet Data User Authentication
- YES
- Peripheral Equipment Interface (PEI)
- YES
- WAP (TMO)
- YES
- Circuit Mode Data (TMO)
- YES
- JAVA Platform 2.0 (TMO)
- NO
Network operation
- Fallback
- YES
- Energy Economy mode
- YES
- Seamless Cell Reselection
- YES
- Multiple Networks
- YES
- Automatic Network Selection
- NO
Security
- Authentication
- SWMI Initiated
- Mutual Authentication (SWMI Initiated)
- Mutual
- Air Interface Encryption Classes
- Classes 1,2, 3 and 3G
- Air Interface Encryption Keys
- SCK, DCK, CCK, GCK
- Air Interface Encryption OTAR
- OTAR of SCK, CCK and GCK
- Air Interface Encryption Algorithms
- Clear, TEA1, TEA2, TEA3, TEA4
- Temporary Enable / Disable
- YES
- Permanent Disable
- YES
- End to End Encryption - Embedded AES128 / AES256
- YES
- End to End Encryption - SIM Card
- YES
- End to End Encryption - Voice calls
- YES
- End to End Encryption - SDS
- YES
- PIN & PUK
- YES
- Password Protected programming
- YES
- Encrypted TEI query
- YES
