HM782

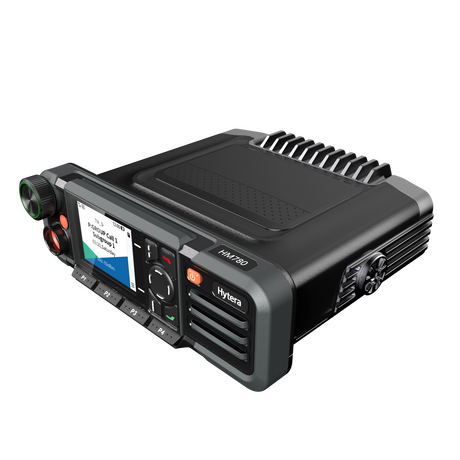

Highlights

Function Button
Patented button structure design provides greater feedback to the operator with 6 programmable keys for customised operation for quick access to features used on regular basis.
Faster Cooling
Improved case design improves heat dissipation to improve cooling when using higher transmit power levels.
Screen
2.4-inch colour screen with simple UI interaction to improve operation.
High Reliability
Textured features make it easier to distinguish each functional area. The frame has a greater wear resistance and enhanced screen design provides greater reliability.
Scalable ports
Accessory Port and Ethernet Port provide connectivity to external accessories and other devices
IP Transit Solution
First ever Hytera DMR radio that can support the IP Transit Solution feature
Functions
More Flexible
Flexible control heads and accessories allow installation according to the users requirements. The connection cable of the remote control head can be either 3m, 10m or 40m as standard. A connection cable of up to 120m is also available (Customisation required).
Clearer Audio
Adopts AI noise cancellation technology to filter out background noise (such as road noise), eliminate echoes, enhance speech and reduce howling when in close proximity to the transmitting radio. With this technology, the mobile radio provides crisper and clearer audio when transmitting and receiving voice calls.
More Reliable
Improved receiver sensitivity improves audio quality in weak signal areas to provide clearer audio
Rich Scalable Application
Supports multiple connections through BT, and the accessory and network (Ethernet) ports. It also supports Clarity Transmission and back to back connections which will greatly facilitate your solutions.
Accessories for HM782
Other
Charger & Power
Audio
Maintenance
Installation
Systems that work with HM782
DMR Systems
DMR Applications
Technical Specifications
General
- Frequency Range
- VHF: 136-174 MHz
- Ux: 350-470 MHz
- UHF2: 450-520MHz
- Channel Capacity
- 1024
- Operating Voltage
- +13.6v ± 15%
- Dimensions(W×H×D)
- 61.5 x 177 x 179 mm
- Weight
- 1520g
- Display
- 2.4 inch LDC display
Environmental Specifications
- Dust & Water Intrusion
- IP54
- Humidity
- Per GJB150A-2009、MIL-STD-810 G Standard
- Vibration, Drop&Shock
- Per GJB150A-2009、MIL-STD-810 G Standard
