MNC360
Move Anywhere. Connect Anytime.

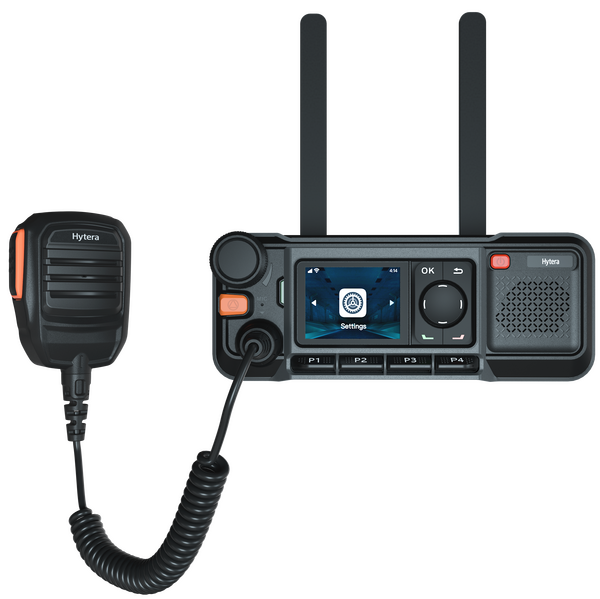

The MNC360 is a push-to-talk over cellular (PoC) mobile radio designed for in-vehicle communication. With Hytera innovative design, it provides reliable, loud and clear voice service for various field communications scenarios. The simple-to-use design enables ease of radio installation, removal, and operation. Working as a professional business-ready PTT mobile radio, the MNC360 is the ideal group communication device for vertical markets.

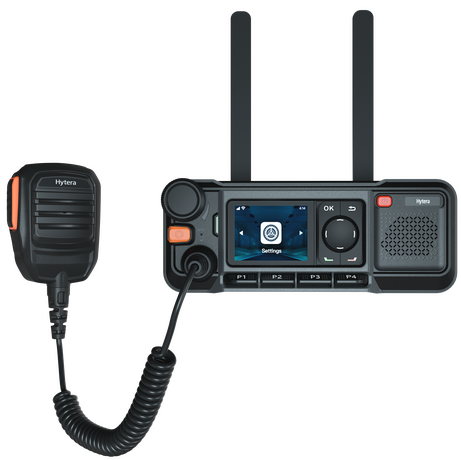

Highlights
Dual Antennas
Dual Sims
Large Volume Knob
Programmable Keys
Multi-Purpose Programmable Keys
Emergency Key
Easily Accessible Emergency Key
4W Built-in Speaker
2.0 Inch LCD Display
Audio Jack and Micro USB Connections
3.5mm Audio Jack and Micro USB Support
Functions
Loud and Clear Audio
The built-in 4-watt speaker comes with distortion suppression, howling suppression and noise cancelling technology, which enables the MNC360 to transmit loud and clear audio even with the window rolled down in construction sites or bustling streets.
Smoother Communication
Compared with regular smartphones, the two external LTE antennas on the MNC360 improve its RX sensitivity by 3db, covering the weak signal area such as a suburb or underground parking lot. The smart switch enables the MNC360 to always select the network with better signal strengths. Stable, seamless, and high-quality communications are ensured everywhere.
Flexibility and Adaptability
Paring with wired or wireless accessories, the MNC360 gives users more freedom and flexibility for voice communications. With the Android system and standard APIs, the MNC360 is open for third-party apps to create an in-vehicle ecosystem for data application in the field. The MNC360 is also highly customizable to extend the capabilities to fit specific needs.
SMART DESIGN, SAFE DRIVING
The MNC360 is a safety assistant providing over-speed alarm and fatigue driving alarm to ensure a safe trip. Keys on the MNC360 are automatically locked during driving, helping the driver focus more on the road and less on the radio. The External USB camera can be connected to the MNC360, working as a dash camera to record the driving journey.
Accessories for MNC360
Included as standard with MNC360
Audio
Maintenance
Other
Antenna
Carrying
Charger & Power
Systems that work with MNC360
Technical Specifications
Network
- Frequency Band
- GSM: 850/900/1800/1900 WCDMA: B1/B2/B3/B4/B5/B8 TDD-LTE: B38/B39/B40/B41 (2496–2690 MHz); FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B26/B28
Hardware
- Operating System
- Android 7.1
- Memory
- 1GB Ram + 8GB ROM
- TF Card
- 128GB (Max)
- Dimensions (H x W x D)
- 170mm x 66mm x 39.3mm
- Weight
- 300g
- Display Screen Size
- 2.0 Inches
- Display Resolution
- 320x240mm
- Sim Card
- 2x Micro-Sim
- Positioning
- GPS/BDS/GLONASS/Galileo/A-GPS
- WLAN
- 2.4 GHz, 802.11 b/g/n
- BT
- BT 4.2
- NFC
- Optional
- External Interfaces
- Micro-USB 2.0 (OTG) 3.5 mm audio jack Two LTE Antenna Ports 2-pin external speaker port GPS antenna connector Power inlet 10-pin aviation port
- Input Voltage
- 9-25 V DC
- Speaker
- 4W Built in (8W External)
Enviornment
- Operating Temperature
- -20 - +60 Degrees Celsius
- Storage Temperature
- -40 - +85 Degrees Celsius
- ESD
- IEC 61000-4-2, (ESD) 12kV (air); 8kV (contact)
- Ingress Protection
- IP54
Certification
- Certificate
- FCC/IC/CE
