E-pack200

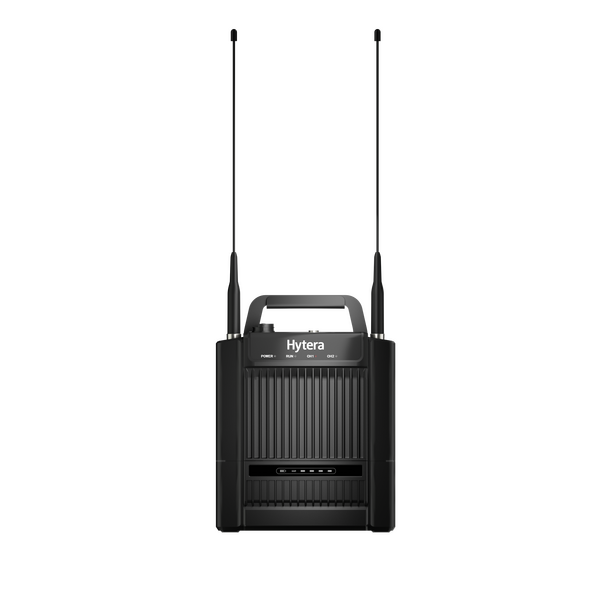

E-pack200 Dual-channel DMR Ad-hoc Portable Repeater
Hytera E-pack200 is a DMR ad-hoc dual-channel repeater for man-pack, The repeater adopts wireless interconnection technology to quickly create multi-hop narrowband networks through cascading connection, free of any IP link such as fiber optic and microwave. The repeater can repeat voice services on dual channels at the same time. The repeater is compatible with Hytera or third-party DMR Tier 2 radios. Moreover, the repeater is easy to hold and carry lightweight design.

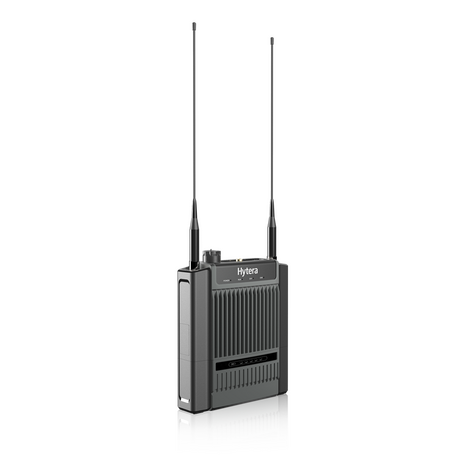

Highlights
More antennas than you see
Built-in LTE antenna, WLAN antenna, and GPS antenna
Rugged design
Ip67 & MIL-STD-810 C/D/E/F/G & Operating temperature: ‒30°C to 60°C
One-touch to view remaining battery power
Easy to carry
Dimensions:211mmx62mmx235mm & Weight:3.1kg
Functions
Fast deployment, create network in seconds
In emergency situations, every second counts. The E-pack200 repeater supports push-to-start for quickly and automatically establishing an independent network after power-on so as to efficiently extend radio coverage.
Free of any IP link, flexible topology networking
The repeater adopts wireless interconnection technology to quickly create multi-hop narrowband networks through cascading connection, free of any IP link such as fiber optic and microwave.
High compatibility
The repeater is compatible with Hytera or third-party DMR Tier 2 radios, as well as Hytera first-generation ad-hoc products.
LTE link as backup, offer a ways-reliable communication solution
When the PMR network is down, the E-pack200 repeater with a SlM card can keep repeating calls or data over the LTE network. Also, it can access the command and dispatch system.
Data encryption, protect data and device
The E-pack200 repeater has multiple security mechanisms such as authentication, software and hardware encryption to protect the data and privacy. It can be disabled temporarily or permanently through the dispatch and command system to prevent unauthorized access.

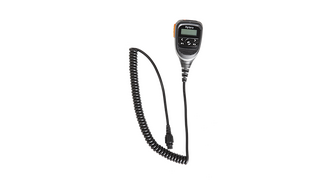

Accessories for E-pack200
Included as standard with E-pack200
Systems that work with E-pack200
Technical Specifications
General
- Private network mode
- DMR conventional
- Node Capacity
- 31
- Battery volume
- 148WH (optional)
- Frequency Range
- VHF: 136-174MHz
- UHF3: 350–400 MHz
- UHF1: 400–470 MHz
- Dimensions(H×W×D) mm
- 238.0 mm x 138.2 mm x 330.9 mm
- Weight
- 5.2 kg
Receiver
- RX Sensitivity(Static)
- –122 dBm@5%BER
- Adjacent Channel Selectivity
- ETSI: 60 dB@12.5 kHz/70 dB@25 kHz
- Intermodulation Response Rejection
- ≥70dB
- Spurious Response Rejection
- ≥70dB
- Blocking
- 84dB
- Conducted Spurious Emission
- 9 kHz to 1 GHz ≤ –57 dBm
- 1 GHz to 12.75 GHz ≤ –47 dBm
Environmental
- Operating Temperature
- –30°C to +60°C
- Storage Temperature
- –40°C to +85°C
- Dust & Water Protection
- IP65
- Humidity
- MIL-STD-810 C/D/E/F/G
- Vibration,Drop&Shock
- MIL-STD-810 C/D/E/F/G
