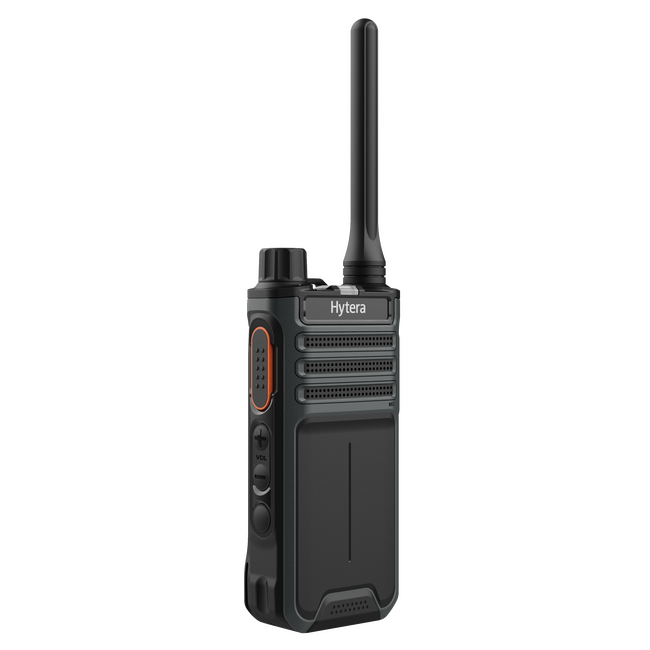

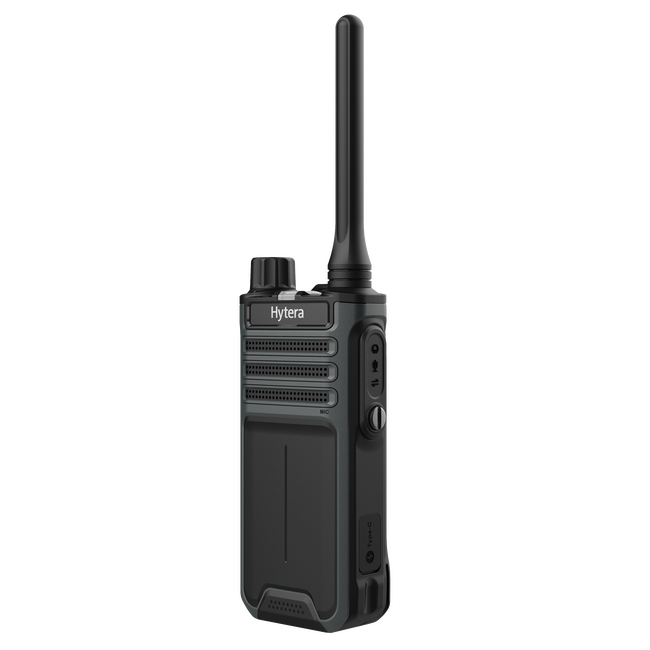

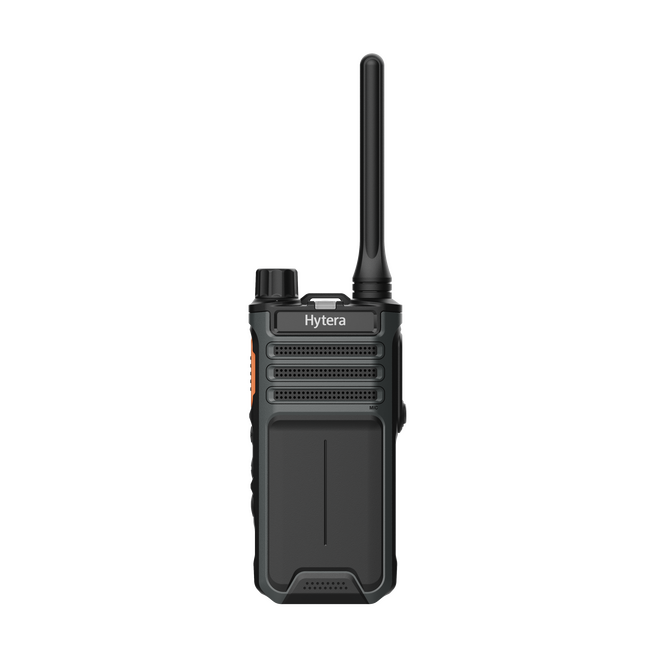

BP512
Business DMR Portable Two-way Radio
BP512 business radio is exquisite and compact, with excellent performance, digital and analog compatibility. Equipped with 3W high-power speakers, it can provide you with clear and loud sound even in the background noisy environment. The battery lasts up to 16 hours, and with the Type-C fast charging function, it can be charged anytime and anywhere, and it can resume work in an instant, ensuring that you can maintain efficient communication at all times.
Highlights
Functions
Clear and Loud Audio
Light and compact with a built-in intelligent noise reduction algorithm, to eliminate unwanted background noise, supports three-level noise reduction adjustment so even if the other party is speaking in a noisy environment, you can still listen clearly. 3W high-power loudspeaker with a loudness of up to 90dBA, the sound is clear and loud even in noisy and other harsh conditions; good howling suppression ability, even if many people use the walkie-talkie in the same room, there will be no annoying howling sound.
Digital And Analog Compatible
Supports both digital and analog modes, compatible with your existing digital and analogue systems and terminals. Powerful digital features like priority interrupt, basic encryption, text messaging and roaming will enhance your business service. The BP512 series has extended range in its class and feature 256 channels, making group communication more flexible.
Excellent Coverage
The BP512 has a high sensitivity receiving module and high efficiency monopole antenna to enhance signal penetration and achieve better call affect even in weak signal areas. In addition, the monopole antenna has a unique thick screw thread design and is not easy to break and bend, it helps to enhance antenna life time and also increase the radiation efficiency compared to traditional antennas by 10% to extend radio communication distance.
High Energy Battery
The BP5 series uses international well-known brand batteries with a long service life. It still has 80% of the initial battery capacity after 500 charge-discharge cycles. The radio can be charged from 0% to 100% in only 1.8 hours. After charging for 1 hour it can work for 10 hours. A 10W rapid-rate charger ensures safe and reliable charging which can work in harsh environments such as high or low temperatures.
Accessories for BP512
Included as standard with BP512
Carrying

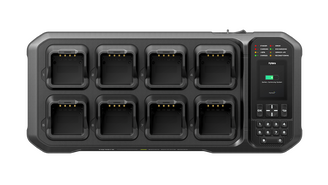

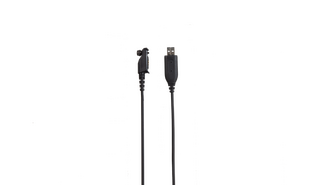

Charger & Power
Installation
Battery
Audio
Maintenance

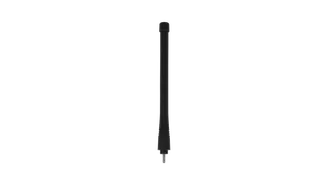

Antenna
Systems that work with BP512
Technical Specifications
General
- Frequency Range
- VHF: 136-174 MHz
- UHF: 400-470 MHz
- Channel Capacity
- 256
- Zone Capacity
- 4
- Channel Spacing
- 12.5 kHz/20 kHz/25 kHz
- Operating Voltage
- 7.2 V (rated)
- Battery
- 1500mAh 7.2V
- 2400mAh 7.2V (Optional)
- Battery Life (5/5/90 Duty Cycle, High TX Power)
- Analog: 12h (1500mAh)，18h (2400mAh)
- Digital: 16h (1500mAh)，26h (2400mAh)
- Dimensions (H x W x D)
- 115 mm x 55 mm x 29.5 mm
- Weight (with antenna & battery)
- 210g±5%g
- BT (optional)
- BT 5.0
Receiver
- Sensitivity(Analog)
- 0.18 μV (12 dB SINAD)
- Sensitivity(Digital)
- 0.18 μV/BER5%
- Adjacent Channel Selectivity
- TIA-603: 60 dB@12.5 kHz / 70 dB@20/25 kHz
- ETSI: 60 dB@12.5 kHz / 70 dB@20/25 kHz
- Intermodulation
- TIA-603: 70 dB@12.5/20/25 kHz
- ETSI: 65 dB@12.5/20/25 kHz
- Spurious Response Rejection
- TIA-603: 70 dB@12.5/20/25 kHz
- ETSI: 70 dB@12.5/20/25 kHz
- Blocking
- TIA-603: 80 dB
- ETSI: 84 dB
- Hum and Noise
- 40 dB@12.5 kHz 43 dB@20 kHz 45 dB@25 kHz
- Rated Audio Power Output
- 1W
- Rated Audio Distortion
- ≤3%
- Audio Response
- +1~-3 dB
- Conducted Spurious Emission
- <-57 dBm
Transmitter
- RF Power Output
- VHF: 5W/1W
- UHF: 4W/1W
- FM Modulation
- 11K0F3E@12.5 kHz 14K0F3E@20 kHz 16K0F3E@25 kHz
- Conducted/Radiated Emission
- -36 dBm＜1 GHz -30 dBm＞1 GHz
- Modulation Limiting
- ±2.5 kHz@12.5 kHz ±4.0 kHz@20 kHz ±5.0 kHz@25 kHz
- FM Hum & Noise
- 40 dB@12.5 kHz 43 dB@20 kHz 45 dB@25 kHz
- Adjacent Channel Power
- 60 dB@12.5 kHz 70 dB@20/25 kHz
Environmental
- Operating Temperature
- -30°C to +60°C (Radio only - Battery -20°C)
- Storage Temperature
- -40°C to +85°C
- ESD
- IEC 61000-4-2 (Level 4) ±8 kV (contact) ±15 kV (air)
- Dust and Water Intrusion
- IEC60529-IP54/IP67(optional)
- Humidity
- Per MIL-STD-810 H
