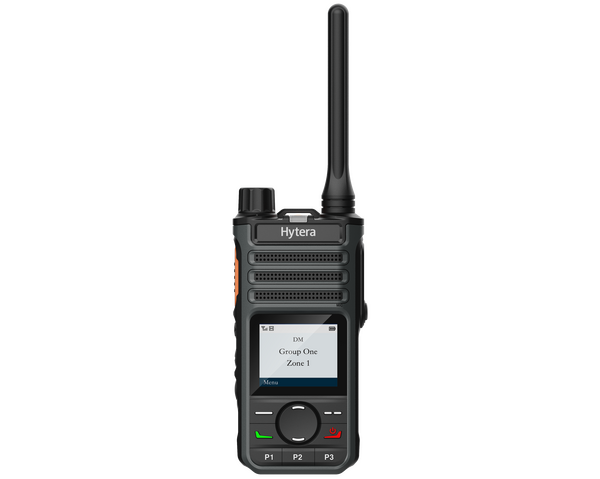

BP562
Rugged CB Capable DMR Portable Radio
Hytera BP562 comes with a 1.77-inch colour display, light and compact with 3W high-power loudspeaker. It is ideal for use in retail, hospitality, construction or education. Supports both digital and analog CB/licensed mode. The BP562 has an extended range in class and features 256 channels, making group communication more flexible. In addition, high energy battery and Type-C USB charging allow you to stay operationally productive.

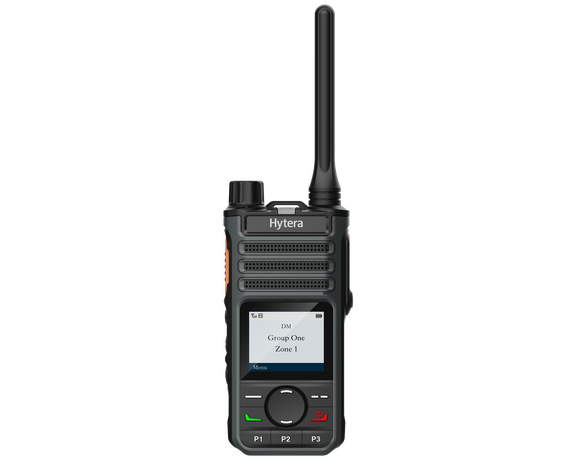

Highlights
Antenna
Multiple sizes available
PTT Key
Push-to-talk key easily accessible
Secure Interface
9 Pin Accessory Connector
Anti-Slip and Durable Texture
Anti-abrasive housing for better handling
1.77 Inch Colour Display
Clear and easy to see
Functions
High Energy Battery
The BP562 uses international well-known brand batteries with a long service life. It still has 80% of the initial battery capacity after 500 charge-discharge cycles. The radio can be charged from 0% to 100% in only 1.8 hours. After charging for 1 hour it can work for 10 hours. A 10W rapid-rate charger ensures safe and reliable charging which can work in harsh environments such as high or low temperatures.
Clear and Loud Audio
Light and compact with a built-in intelligent noise reduction algorithm, to eliminate unwanted background noise, supports three-level noise reduction adjustment so even if the other party is speaking in a noisy environment, you can still listen clearly. 3W high-power loudspeaker with a loudness of up to 90dBA, the sound is clear and loud even in noisy and other harsh conditions; good howling suppression ability, even if many people use the walkie-talkie in the same room, there will be no annoying howling sound.

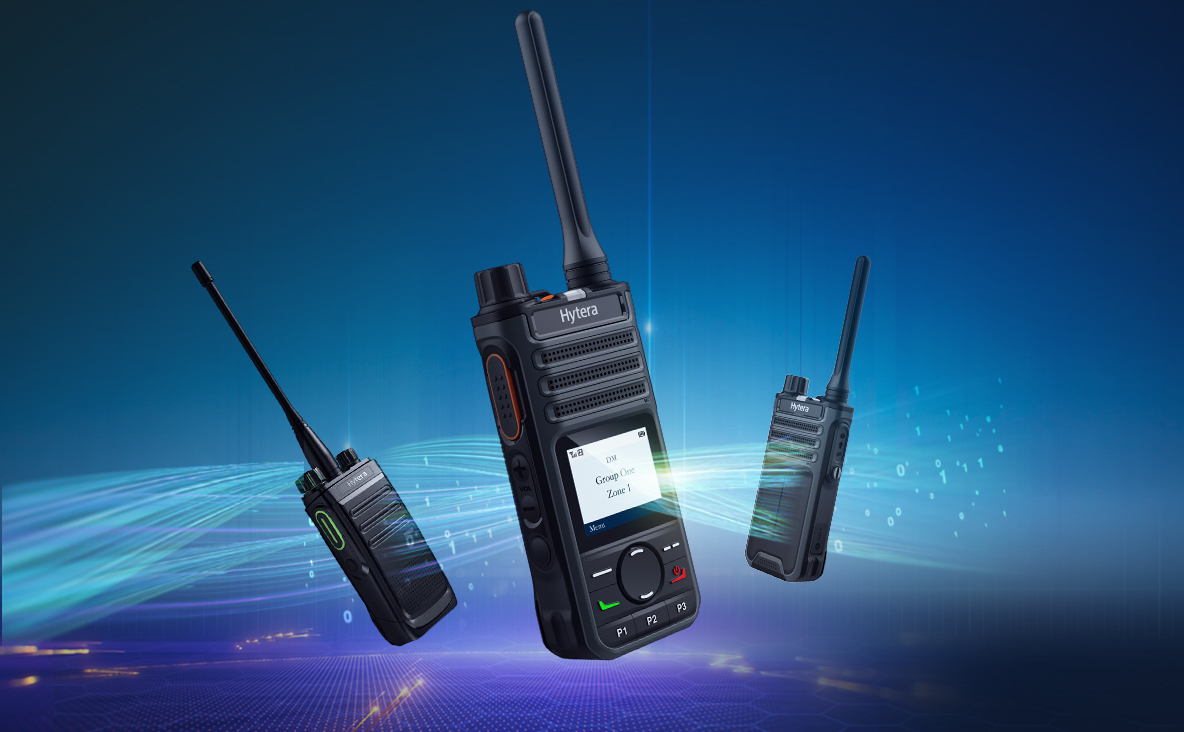

Digital and Analogue Compatible
Supports both digital and analogue modes, compatible with your existing digital and analogue systems and terminals. Powerful digital features like priority interrupt, basic encryption, text messaging and roaming will enhance your business service. The BP562 series has extended range in class and feature 256 channels, making group communication more flexible.
Excellent Coverage
The BP562 has a high sensitivity receiving module and high efficiency monopole antenna to enhance signal penetration and achieve better call affect even in weak signal areas. In addition, the monopole antenna has a unique thick screw thread design and is not easy to break and bend, it helps to enhance antenna life time and also increase the radiation efficiency compared to traditional antennas by 10% to extend radio communication distance.
Accessories for BP562
Included as standard with BP562
Carrying
Charger & Power
Installation
Battery
Audio
Maintenance
Antenna
Systems that work with BP562
Technical Specifications
General
- Frequency Range
- UHF2: 450-520 MHZ
- Channel Capacity
- 256
- Zone Capacity
- 8
- Channel Spacing
- 12.5kHz/20kHz/25kHz
- Operating Voltage
- 7.4V
- Battery
- 1500mAh (Standard)
- 2000mAh (Optional)
- Battery Life (5/5/90 Duty Cycle, High TX Power)
- Analogue: 12h (1500mAh), 16h (2000mAh)
- Digital: 16h (1500mAh), 22h (2000mAh)
- Weight (with antenna & battery)
- 230g±5%g
- Dimensions (H x W x D)
- 115X54.5X29.5mm
- Display
- 1.77 inch TFT
Receiver
- Sensitivity
- Digital: 0.1 BμV / BERS%
- Analogue: 0.1 BμV (12dB SINAD)
- Adjacent Channel Selectivity
- TIA-603: 60dB@l 2.5kHz; 70dB@20/25kHz
- ETSI: 60dB@l 2.5kHz; 70dB@20/25kHz
- Intermodulation
- TIA-603: 70dB@l 2.5/20/25kHz
- ETSI: 65dB@l 2.5/20/25kHz
- Spurious Response Rejection
- TIA-603: 70dB@l 2.5/20/25kHz
- ETSI: 70dB@l 2.5/20/25kHz
- Blocking
- TIA-603: B0dB
- ETSI: 84dB
- Hum and Noise
- 40dB@l 2.5kHz; 43dB@20kHz; 45dB@25kHz
- Rated Audio Power Output
- 1W
- Rated Audio Distortion
- <3%
- Audio Response
- +1 to -3dB
- Conducted Spurious Emission
- <-57dBm
Transmitter
- RF Power Output
- 5W/1W
- FM Modulation
- 11 K0F3E@l 2.5kHz; 14K0F3E@20kHz; 16K0F3E@25kHz
- Conducted/Radiated Emission
- -36dBm<lGHz; -30dBm>l GHz
- Modulation Limiting
- ±2.SkHz@l 2.SkHz; ±4.0kHz@20kHz; ±5.0kHz@25kHz
- FM Hum & Noise
- 40dB@12.5kHz; 43dB@20kHz; 45dB@25kHz
- Adjacent Channel Power
- 60dB@12.5kHz; 70dB@20/25kHz
Environmental
- Operating Temperature
- -30°C ~ +60°C
- Storage Temperature
- -40°C ~ +85°C
- ESD
- IEC 61000-4-2 (Level 4) ±BkV (contact); ±15kV (air)
- Dust and Water Intrusion
- IEC60529-IP67
- Humidity
- MIL-STD-810 G
- Shock and Vibration
- MIL-STD-810 G
