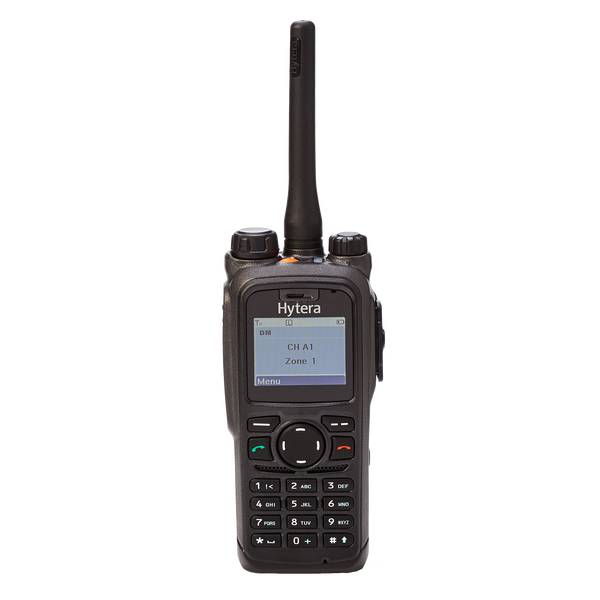

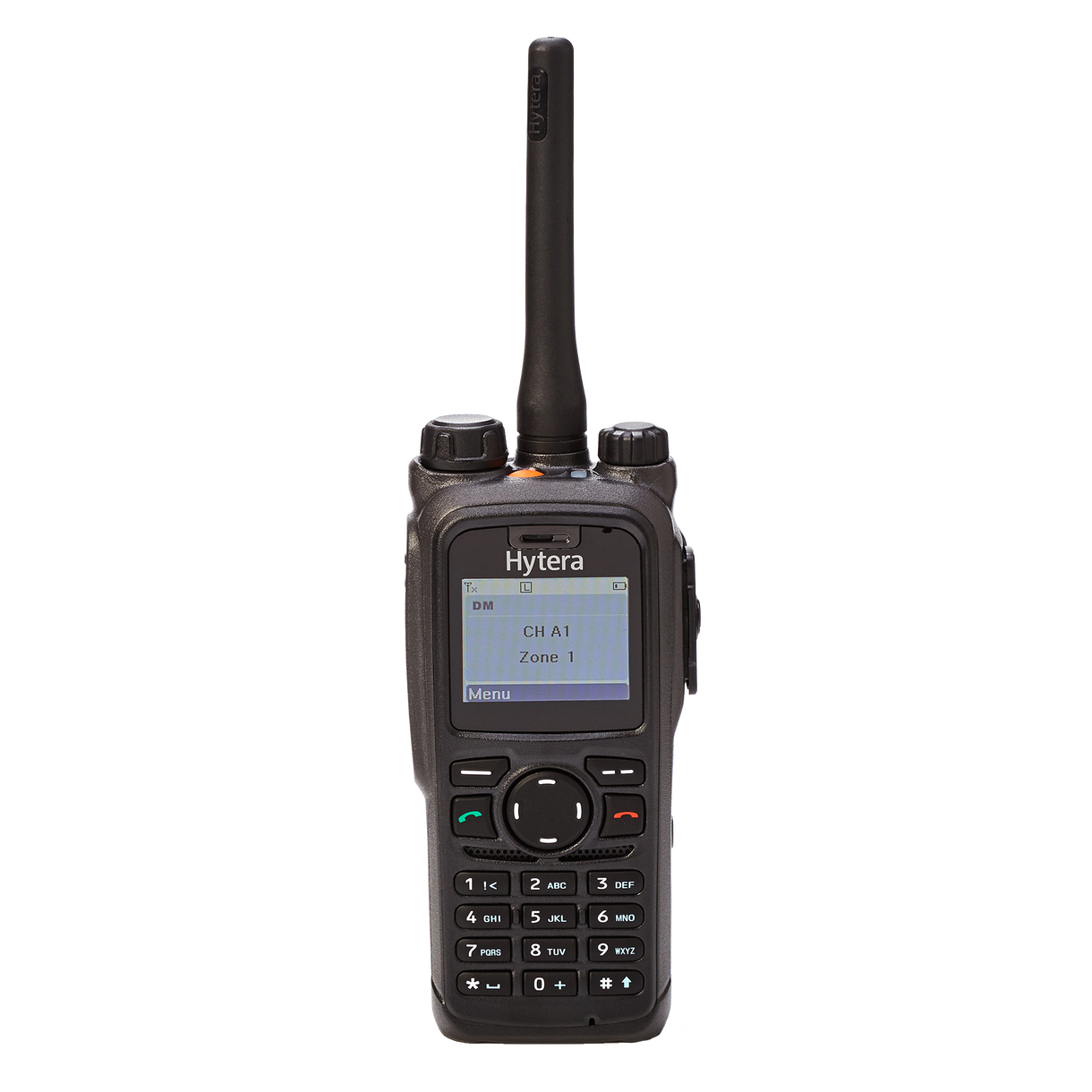

PT580H PLUS S
Professional, rugged, TETRA two-way radio
Full of functionality, packed inside an ergonomic design, the Hytera PT580H Plus S TETRA two-way radio handset boasts an IP67 protection to deliver unbeatable TETRA communication, no matter the environment.
For pricing and availability, use the link below to find and contact your local dealer.

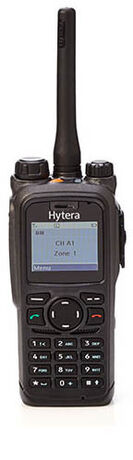

Highlights
Versatile Operation
The PT580H Plus S provides rapid access to the TETRA radio network in trunked mode (TMO), communicates between radios in direct mode (DMO) and can also boost the area of operation via DMO Repeater mode (licensed)
Safer Workforce
Protecting the user with lone worker, man down alarm and emergency alarm features
Dustproof and Waterproof
IP67 rating for ingress protection, withstanding submersion in 1 metre of fresh water for a duration of up to 30 minutes
Voice and Data Services
Thanks to the integrated GPS function precise positioning is available, as well as many other voice and data services according to the TETRA standard
Clear Communication
The PT580H Plus features an advanced audio chip with the latest noise cancelling capability. Users working in noisy environments therefore benefit from excellent audio quality
Functions
RF Power
High 3W transmit power to improve coverage without the need for an additional license.
Full Call Out
Use the radio as a pager with integrated resource management function.
OTAP (Over The Air Programming)
Make adjustments to the existing programming of the radio using the free OTAP application.
Passwords, PINs and Encryption
Protect your workforce against evesdropping or "man in the middle" attacks by applying a PIN/PUK at switch on, protect the programming with a password and use Air Interface Encryption and End to End Encryption.
Status Remote Control:
Control the radio remotely by sending it specific status messages.
Man Down
Keep your workforce safer and let the radio generate an alarm when it does not move or is tilted over the programmed angle.
Accessories for PT580H PLUS S
Included as standard with PT580H PLUS S
Audio
Antenna
Battery
Installation
Charger & Power
Car Kit
Carrying
Maintenance
Systems that work with PT580H PLUS S
TETRA Applications
TETRA Systems
Technical Specifications
General
- Frequency Range
- F3 : 380 - 430MHz F4 : 405 - 475MHz F5 : 806-870 MHz
- Battery Life
- 1800mAh, 20hr
- Dimensions(W×H×D)
- 127.5 x 55 x 36.5 (mm)
- Weight
- 374g (with standard battery and antenna)
- Display
- 160 x 128 pixels, 65536 colors 1.8 inch, 4 rows
- Keypad
- Full keypad
- Programmable Buttons
- 23
User Interface
- Display
- 1.8inch, 160*128 pixels, 65536 colors
- Talk Group-TMO
- 6000
- Talk Group-DMO
- 4000
- Telephone book
- 2000
- Inbox
- 400
- Outbox
- 50
- Drafts
- 50
- Folder-TMO
- 200
- Folder-DMO
- 50
- State Message
- 200
RF Specifications
- Channel Bandwidth
- 25KHz
- RF Power Output
- 3W(1.8W For 806-870MHz)
- RF Power Level Accuracy
- ±2dB
- RF Power Control
- 5dB per step, 5 levels and 4 steps in total
- Receiver Class
- ETSI EN 392-2/396-2 Class A and Class B
- RX Sensitivity(Static)
- ≤-116dBm（typical-118dBm） 806-870MHz: ≤-115dBm（typical-116dBm）
- RX Sensitivity(Dynamic)
- ≤-107dBm（typical-109dBm） 806-870MHz: ≤-106dBm（typical-107dBm）
- Audio Power Output
- 2W(Peak 3W)
GPS Specifications (For the Model with GPS)
- RX Sensitivity
- Acquisition sensitivity: -146dBm Tracking sensitivity: -165dBm
- Horizontal Position Accuracy
- ≤2.5m (50% probable)@-130dBm
- Cold Start (Time to First Fix)
- <35s
- Hot Start (Time to First Fix)
- <1s
- Note
- Conditions: Open Sky environment, 130dBm signal strength, 24H static
Environmental
- Operating Temperature
- -30℃ ~ +60℃
- Storage Temperature
- -40℃ ~ +85℃
- Humidity
- ETS 300-019-1-7 Class 7.3E MIL-STD-810 G
- Dust & Water Protection
- IP65/66/67/68 Per IEC60529
- Vibration,Drop & Shock
- MIL-STD-810 G ETS 300-019-1-7 Class 5M3 GJB150A-2009
