BN100
HyTalk PMR Gateway
Hytera HyTalk PMR Gateway has the capability to realize half-duplex voice communications between the narrowband radios and broadband radios. Use existing public network resources to help narrowband users communicate with each other anywhere.

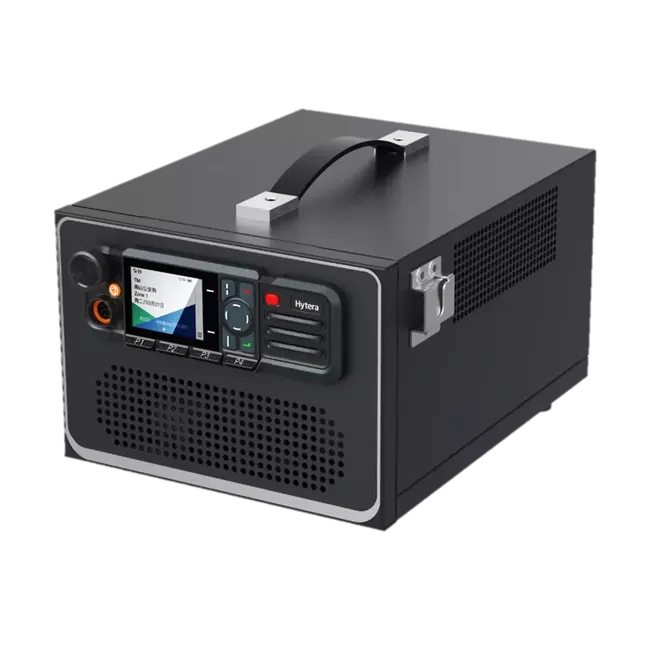

Voice Gateway Box is one of the necessary equipment for Hytalk PMR Gateway. It is used to integrate the Poc Mobile Radio and DMR Mobile Radio to quickly realize voice intercommunication. The box is lightweight, easy to assemble, portable and easy to carry. The accessories include power supply, power cord, fan, and connection cables (power connection cable, antenna connection cable, and vehicle back-to-back connection cable); at the same time, there are multiple external antenna adapters designed to expand signal coverage.
Highlights
Functions
Enhanced collaboration
This solution unleashes the collaborative potential of radios in the field, no matter whether they are narrowband or broadband. This enables different user groups to seamlessly communicate with each other in a unified way for increased work efficiency.
Extended reach
Leveraging the public network, this solution cost effectively interconnects PMR networks in different regions, without building extra expensive ground infrastructure. So legacy narrowband radios can be reused for voice communication without boundaries, protecting the existing investments in narrowband.
Ease of use
Simple but intuitive, this solution is easy to deploy and use. The voice gateway box containing two mobile radios is compact and weight less then 8kg and is very easy to transport.
Low latency
This solution supports back-to-back connection between one PMR mobile radio and one PoC mobile radio. This greatly accelerates transmission rate and reduces audio latency. Thus, narrowband and broadband radio users can stay connected quickly.
Accessories for BN100
Included as standard with BN100
Systems that work with BN100
Technical Specifications
Disclaimer
- Terminals Required
- HM782 & MNC360 (Not Included in BN100)
General
- Dimensions(H×W×D) mm
- 288 x 244 x 158 mm
- Weight
- No mobile radio: 2.8 kg
- With two mobile radios: 8kg

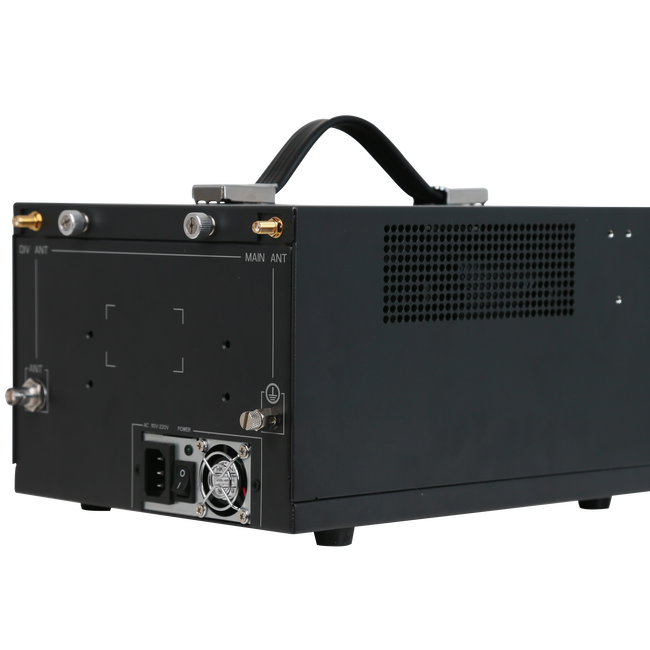

Connector and switch
- Narrowband Antenna Connector
- 1
- LTE Antenna Connector
- 2
- Power Inlet
- 1
- Power Switch
- 1
- Palm Microphone Connector
- 1
- Input Voltage
- 100-240v AC
Environmental
- Operating Temperature
- -20°C to +60°C
- Storage Temperature
- -40°C to +85°C
