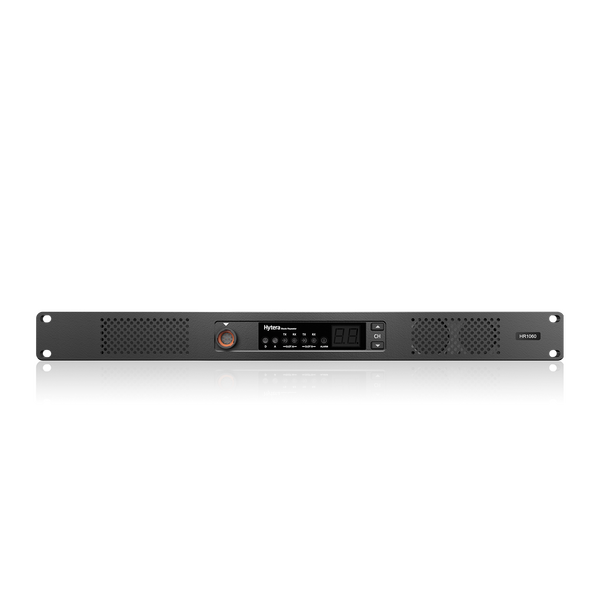

HR1062
Ultra-thin DMR Repeater
Based on rich industry experience, customer feedback and technological evolution, Hytera has launched the next generation of digital repeater. The HR1062 has a smaller form factor, enhanced performance, remote management tools and enhanced functionality. It also provides a cost-effective solution to communication networks. Pair with other H Series devices to maximise next generation DMR communication.

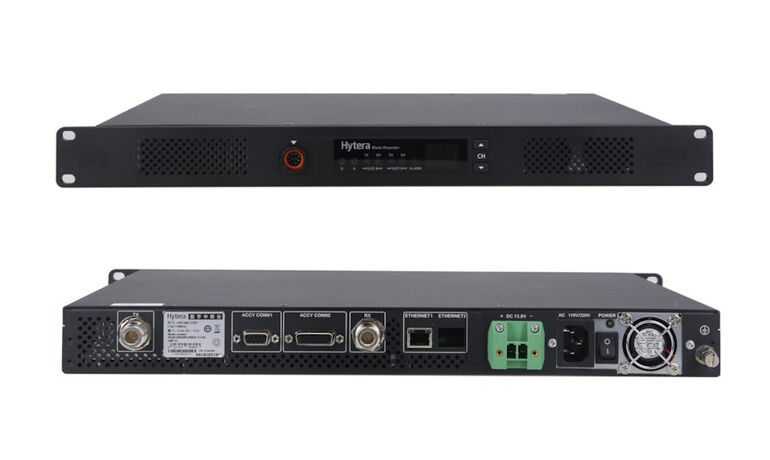

Highlights
Channel Display
Display the channel number.
Power Input
Internal AC power supply with DC battery back-up allows operation during power failures.
Ethernet
Ethernet port provides access to IP networks, allowing the HR106X to connect to other repeaters and application software for voice dispatching, AVL and messaging.
Antenna
Improved receiver sensitivity gives enhanced coverage and clearer audio compared to older products.
Functions
Ultra-thin Modular
The 1U height of the HR106X series makes it compact, thus reducing space requirements for installation.
Outstanding Performance
Enhanced version with additional co-processor provides increased processing speed to increase data processing.
Cost-effective network construction
The enhanced version of HR1062 can support integrated router and SIP gateway functionality, requiring fewer devices and simplified management and offering a cost-effective solution.
Convenient Management
In the enhanced version a web-based repeater management platform has designed to simplify repeater management. Configuration, upgrade and real-time diagnosis can all be completed through a web browser, which is ideal for remote management.
Accessories for HR1062
Included as standard with HR1062
Charger & Power
Audio
Maintenance
Other
Systems that work with HR1062
DMR Applications
DMR Systems
Technical Specifications
General
- Frequency Range
- VHF: 136-174MHz
- UHF1: 400-470MHz
- UHF2: 450-520MHz
- Version
- Standard, without Co-Processor
- Enhanced, with Co-Processor
- Channel Capacity
- 64
- Supply Voltage
- DC +13.6v ± 15% AC 100-240V
- Dimensions(W×H×D)
- 44 x 483 x 366 mm
- Weight
- 5.8kg
- Ethernet Port
- 1 x RJ45 Ethernet Port (Standard Version) 2 x RJ45 Ethernet Port (Enhanced Version)
- USB Port
- 1 x USB Port (Enhanced Version)
