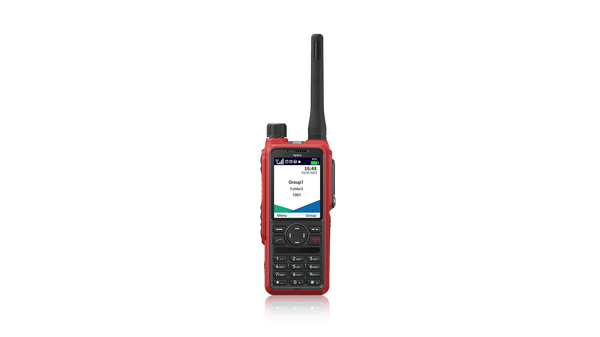

PT890Ex
Intrinsically Safe TETRA Portable Radio
PT890Ex Intrinsically Safe TETRA Portable Radio features a secure design, durable body, and advanced ergonomics. PT890Ex provides clear and loud voice quality, extended working hours, and long-distance communication capabilities. Compliant with stringent IECEx explosion-proof standards, it holds IECEx international certifications. This design meets global explosion-proof certification standards, providing reliable safe communication for industries such as oil and gas, fire rescue, airports, manufacturing, and more.
Highlights
Functions
Authoritative IS Certifications
Through the rigorous testing of the globally recognized certification organizations, PT890Ex obtains the IECEx/ATEX certificates, to reduce the risk of accidents, and ensure the safety of users and operators.
Clear and Loud Voice
With a 2W high-power speaker, the audio is louder. Integrated with AI intelligent noise reduction algorithm, automatic gain control (AGC), and other multiple audio technologies, PT890Ex isolates kinds of noisy backgrounds, and addresses weak sound issues, to make critical voice information clearer and more reliable.
Easy to Use
User-friendly UI design, upgraded 2.4-inch screen, and multifunctional buttons, along with large LED indicator lights, providing a comfortable viewing experience, convenient operation, and doubled efficiency.
Extended Coverage
Class 3L transmission power extends the coverage area. Even in remote areas, critical information can be received, reducing coverage blind spots, enabling rapid response, and collaborating timely handling of critical tasks.
Versatile Connectivity
Supports Bluetooth 5.3, WLAN, and NFC functionalities, allowing for the expansion of third-party application solutions, enabling remote and tag management of radios, ensuring efficient terminal management.

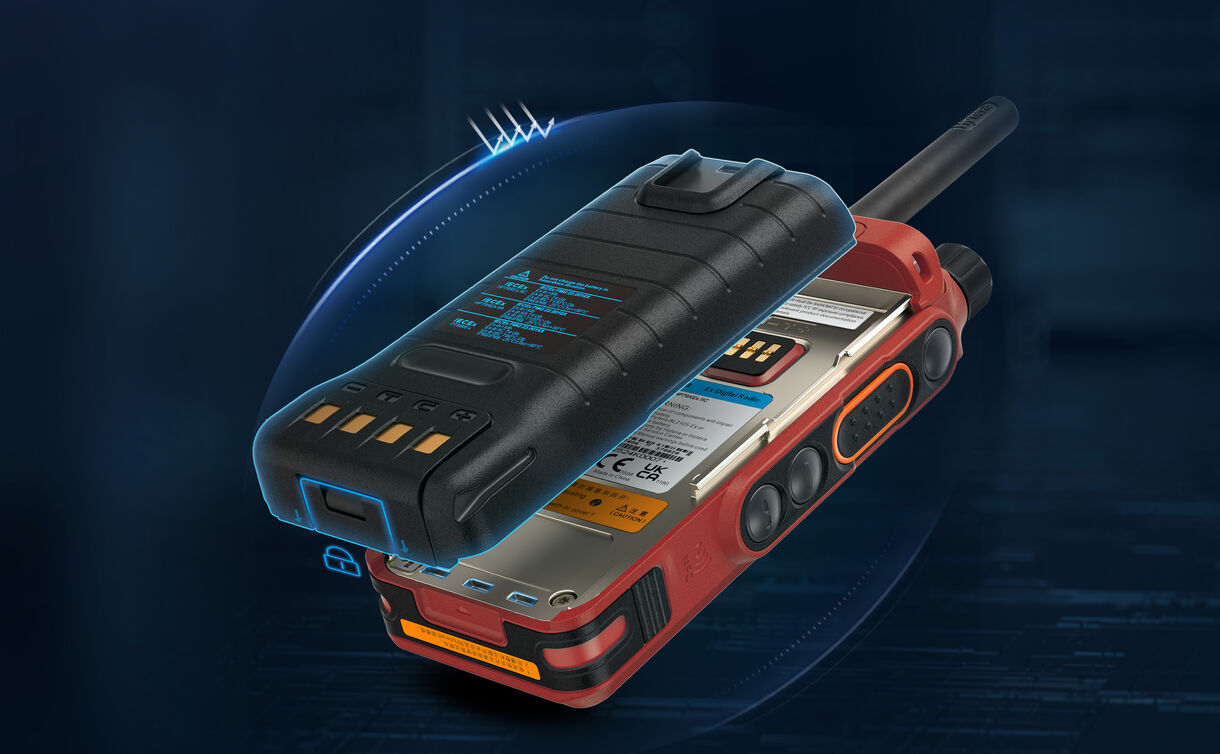

Rocksolid & Longlasting Battery
Designed with a high-grade battery protection board and a novel battery lock , PT890Ex avoid potential sparks even dropped accidentally, and ensures the safe use of the battery in hazardous circumstances. Additionally, PT890Ex prompt on screen with flashing red LED indicator, effectively addressing the security risks of non-original batteries. It also adopts a large-capacity intelligent IS battery and power-saving technology design to reduce standby power consumption, meeting the need for extended communication, and allowing seamless shift changes.
Wider range of operation temperature (in Ex area)
Thanks to new explosion-proof materials and advanced mechanical design, the PT890Ex is built to work under temperatures from –25°C to 60°C in explosion-prone areas. With stable and even heat dissipation, the PT890Ex is engineered to work in extreme conditions, bringing extra safety and efficiency to everyday work.
Built for Workplace Security
Optional standalone mode settings. In case of danger, the PT890Ex will activate the man-down alarm function, precisely sending location details to protect the personal safety of team members.
Accessories for PT890Ex
Included as standard with PT890Ex
Charger & Power
Audio
Maintenance
Antenna
Carrying
Battery
Systems that work with PT890Ex
Technical Specifications
General
- Frequency Range
- Fv: 380–475 MHz
- F5: 806-870MHz
- Dimensions(H×W×D) mm
- 130 mm x 55 mm x 37 mm
- Weight
- ≤390 g (with standard battery and antenna)
- Battery
- Standard: 2150 mAh IIC explosion-proof Li-ion battery
- Operating Voltage
- 7.4 V DC
- Rated Audio Power Output(Internal)
- 1.5 W (rated), 2 W (max.)
User Interface
- Display
- 2.4 inches, 320 x 240 pixels
- Talk Group-TMO
- 12000
- Talk Group-DMO
- 6000
- Telephone book
- 2000
- Inbox
- ≤550 entries
- Outbox
- ≤550 entries
- Drafts
- ≤550 entries
- Folder-TMO
- 200
- Folder-DMO
- 50
- State Message
- 200
Environmental
- Operating Temperature
- –30°C to +60°C (in non-Ex area); –25°C to +60°C (in Ex area)
- Storage Temperature
- –40°C to +85°C
- Dust & Water Protection
- IP65/IP66/IP67/IP68
- Humidity
- 0.95
- Vibration ,Drop & Shock
- MIL-STD-810 HETSI EN 300 019-1-7 5M3
