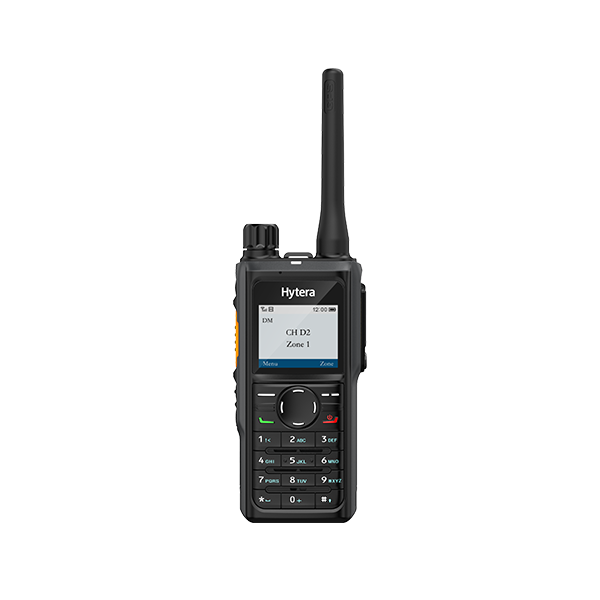

HP682
Professional DMR Portable Two-way Radio
Small and light in style, the HP682 handheld DMR radio delivers class-leading audio performance and extended coverage together with a Lithium Polymer battery, ability to operate in extreme environments and support for abundant features. The HP682 DMR handheld is an easy-to-use two way digital radio tool for customer-facing staff, enabling them to focus on their daily tasks and improve efficiency.

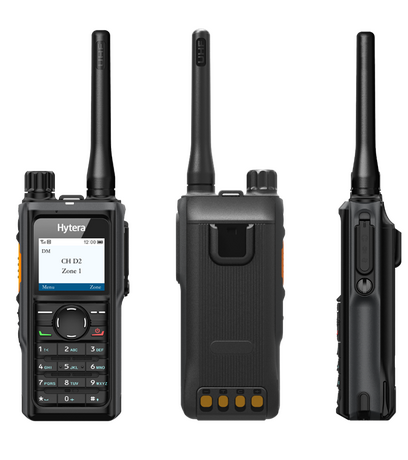

Highlights
Button
Tactile PTT, three programmable buttons and more shortcut function settings.
High Reliability
IP67 rated, able to withstand a 2-meter drop and meets MIL-STD-810 G standard
High Sensitivity
Industry-leading sensitivity gives enhanced coverage with existing infrastructure to ensure clear audio in weak signal areas.
Battery
A long battery life of over 20 hours @ 5-5-90 as standard means the user no longer needs to replace the battery or charge the radio during their shift.
Keyboard
Reliable and durable keyboard.
Functions
Light and Stylish
The streamlined HP682 is compact and light and designed for ease of use with a Tactile PTT and programmable buttons for common functions. The integrated BT5.0 technology provides flexible wireless connection with accessories for hands-free operation.
Clear Audio
The HP682 uses the cutting-edge AI-based noise cancellation technology to decrease the unwanted background noise and reduce howling, maintaining high audio clarity. Users can now hear and be heard regardless of any noise.
Long Battery Life
The HP682 has a long battery life over 20 hours @ 5-5-90 as standard. Users no longer need to charge the radio or change the battery during their shift
Rugged and Durable
Manufactured to meet MIL-STD-810 G standard, the HP682 is IP67 rated and can withstand a 2-meter drop to stand up to a the toughest user environments
Easy to Use
The HP6 series is designed for ease of use in a compact and discreet form. Tactile PTT, programmable buttons and keys allow professionals to respond positively.
Extended Range
Thanks to the improved receiver sensitivity, the HP6 series provides better connectivity both in marginal areas of coverage and indoors. This will deliver improved safety and operational benefits for operatives in the field.
Roaming
Optional, roaming allows radios to move between sites in the IP Multi-site Connect system or XPT Multi-site system without dropping connection.
Accessories for HP682
Included as standard with HP682
Carrying
Charger & Power
Installation
Battery
Audio
Maintenance
Antenna
Systems that work with HP682
Technical Specifications
General
- Frequency Range
- VHF: 136-174MHz
- UM: 400-527MHz
- Channel Capacity
- 1024
- Zone Capacity
- 64
- Channel Spacing
- 12.5 kHz/20 kHz/25 kHz
- Operating Voltage
- 7.7 V(rated)
- Battey Life(5/5/90 Duty Cycle,High TX Power)
- 2000 mAh: 20h (GNSS Off) 16h (GNSS On)
- 3000 mAh: 30h (GNSS Off) 24h (GNSS On)
- Frequency Stability
- ±0.5 ppm
- Antenna Impedance
- 50 Ω
- Dimensions(H×W×D) mm
- 122 mm ×55 mm ×31.5 mm
- Weight
- 280 g
- Display
- Transflective LCD, 1.8 inch
- BT
- V5.0 BLE+EDR
- Certification
- Per MIL-STD-810H Standard
Environmental Specifications
- Dust & Water Intrusion
- IP67 Standard
- Operating Temperature
- -30°C to +60°C
- Humidity
- MIL-STD-810H
- Vibration, Drop & Shock
- MIL-STD-810H
- Horizontal Position Accuracy
- ＜5 meters
