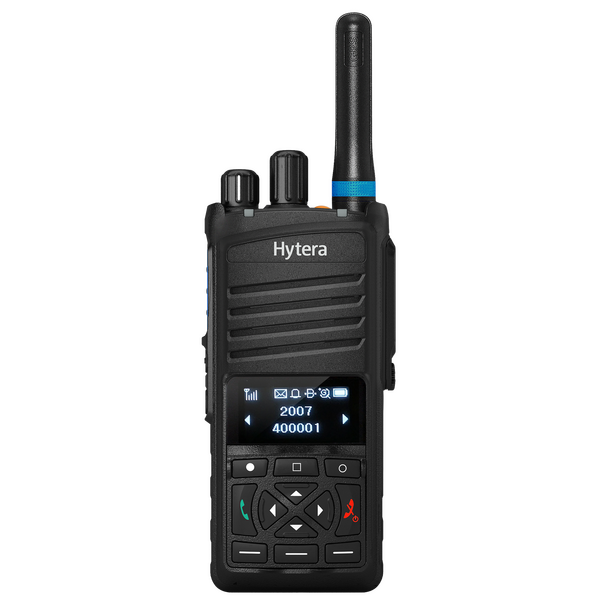

PT350
Rugged Wideband TETRA Radio for Harsh Environments
The PT350 always stands up to the harshest environments like factories, ports or open mining. It delivers ultra-clear voice no matter which noisy environment they are required to operate in. With simple UI and easy operation, PT350 provides users less distraction during voice communication.

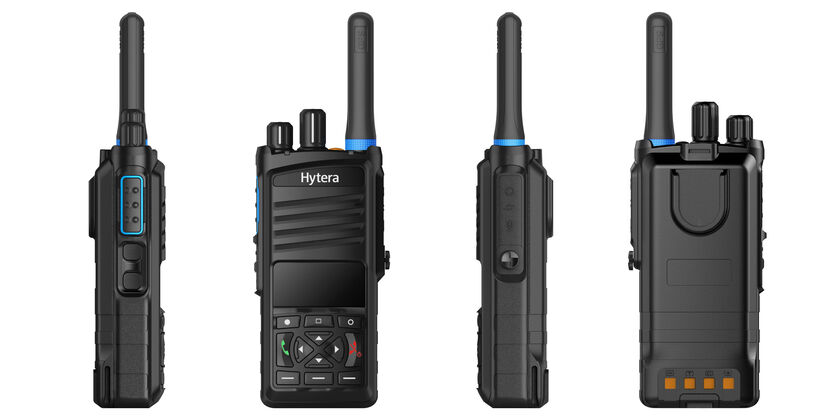

Highlights
Antenna
RF&GPS Dual mode antenna
Ultra-clear audio quality
With water-porting technology, any water that gets into the speaker cavity is drained out easily, ensuring audio clarity is maintained. Coupled with this is a patented microphone aperture design, which prevents any wind noise interfering with transmissions.
Easy Carry
Designed for industry use, PT3 series equipped a U type slot for belt clip attachment. It's easy to compatible with all kinds of belt without loose for drop and lose risk.
Reliability
Considering harsh outdoor or industrial environment, the PT3's rugged design and exceptional battery life makes it the right radio to deal with the challenges of these severe environment.
Functions
Wide Band Compatibility
The PT3 series radios come in two wide bands 320-475MHz, 806-870MHz. Utilizing wide bands in this way reduces cost in terms of stocking different frequency bands ensuring you can always support your customers regardless of what license they are granted.
Reliabiltiy
Considering harsh outdoor or industrial environment, the PT3's rugged design and exceptional battery life makes it the right radio to deal with the challenges of these severe environment. A clever sunken screen design protects the OLED display from accidental damage, with IP65, IP66, IP67 and IP68 as well as MIL-STD 810G rating the PT3 series is perfectly suited to any severe environment.
Simple and Easy Operation
The PT3 with its reduced keypad but larger keys is easier to use than others small radios, with exceptional physical feedback when pressing keys even with gloves. With its simple UI and easy operation, the PT3 series provides users less distraction during voice communication to help with operational efficiency. With its clear OLED screen ensuring visibility even in bright sunlight and it's simple menu navigation makes using the PT3 easy and intuitive.
Easy Carry
Designed for industry use, PT3 series equipped a U type slot for belt clip attachment. It's easy to compatible with all kinds of belt without loose for drop and lose risk. Or rotatable ability makes pocket clip or shoulder clip possible. The PT3 comes with the ability to support various carrying options. A "designed in" U slot for belt clips, which come in thress sizes, (the longest supplied with the radio). As well as the option for fitting a Klick Fast attachment or wrist strap.
Accessories for PT350
Included as standard with PT350
Systems that work with PT350
TETRA Applications
TETRA Systems
Technical Specifications
General
- Frequency Range
- 320-475MHz 806-870MHz
- Dimensions(H×W×D)
- 123.5mm × 55.5mm × 32.5mm
- Weight
- 280g±5g（with standard battery and antenna）
- Battery
- 3800mAH Li-lon battery
- Battery Life (TMO 5/5/90 duty cycle)
- >22hours
- Operating Voltage
- 3.85V
RF Performance
- Channel Bandwidth
- 25KHz
- RF Power Output
- 1.8W
- RF Power Level Accuracy
- ±2dB
- Receiver Class
- ETSI EN 392-2/396-2 Class A and Class B
- RX Sensitivity(Static)
- ≤-116dBm(typical-118dBm)
- RX Sensitivity(Dynamic)
- ≤-107dBm(typical-109dBm)
- Audio Power Output
- 2W（Max: 3W）
Display and User Interface
- Screen
- 1.3 inch, 128*64 pixels, OLED
- Talk Group-TMO
- 12000
- Talk Group-DMO
- 6000
- Telephone book
- 200
- Inbox
- 200
- Outbox
- 100
- Folder-TMO
- 200
- Folder-DMO
- 50
- State Message
- 100
GPS
- RX Sensitivity
- -148dBm acquisition sensitivity -162dBm tracking sensitivity
- Horizontal Position Accuracy
- <2.5m, CEP, 50%
- Cold Start (Time to First Fix)
- 30s
- Hot Start (Time to First Fix)
- 1s
- Note
- Conditions: Open Sky environment, -130dBm signal strength, 24H static
Environmental
- Operating Temperature
- -20℃ ~ +60℃ -30℃ ~ +70℃（performance limited）
- Storage Temperature
- -40℃ ~ +85℃
- Humidity
- ETS 300 019-1-7 Class 7.3E MIL-STD-810 G
- Dust & Water Protection
- IP65/IP66/IP67/IP68 per IEC60529
- Vibration,Drop&Shock
- ETS 300 019-1-7 Class 5M3 MIL-STD-810 G GJB150A-2009
