PNC550
Integrating smartphone and professional Push-to-Talk over cellular functionality

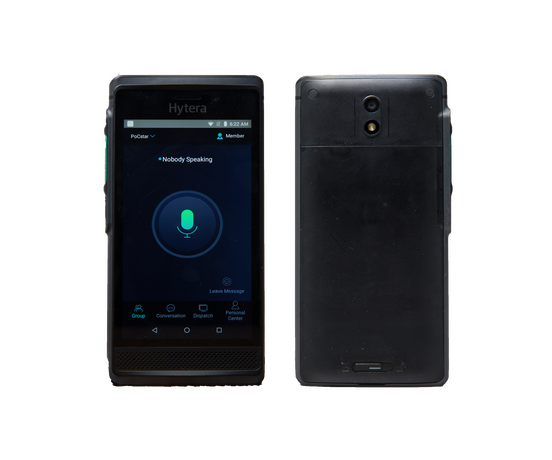

The PNC550 is a smart PoC terminal, integrating smart phone and professional Push-to-talk over cellular functionality. Hytera's PNC550, is equipped with Android 8.1 operating system, 5-inch multi-touch screen, high definition camera and 2W high fidelity speaker; not only does this product meet the basic needs of voice intercom for industry users, but also delivers the requirements for multimedia usage. PNC550 is compatible with a range of PoC solution platforms on the market and can be adapted to individual needs of the customer.
Highlights
Rugged and Reliable

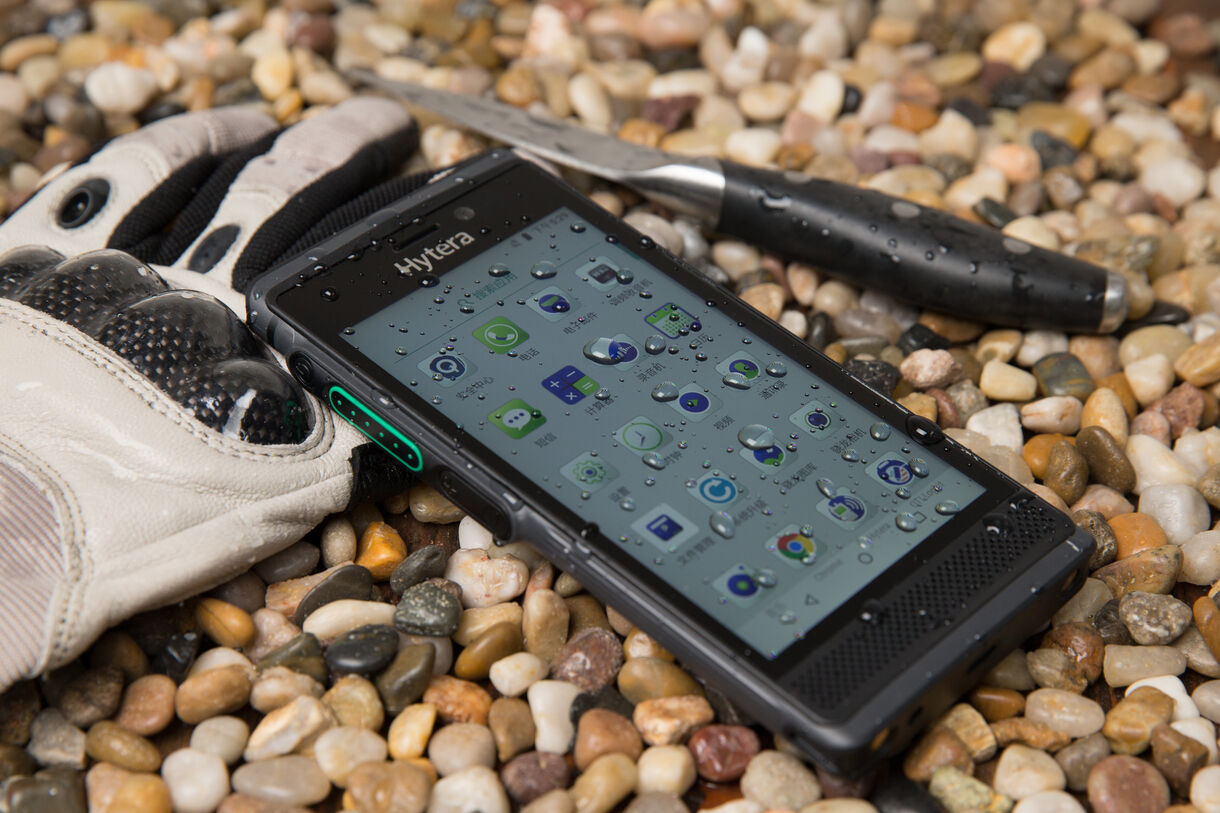

IP68 rated and 1.2m drop-proof design makes the PNC550 a suitable product to provide reliable communications at all times.
Clear Communication
The dual mic noise suppression technology and powerful voice recognition function effectively differentiate human voice in any noisy working environment. The built-in 1W speaker provides clear audio quality for versatile voice service.
High capacity battery and Fast charge
PNC550 features a 4000mAh removable battery providing communications for longer working hours and also hours and also supports 2A fast charge. The battery can be charged via a desktop charger, USB or multi-unit charger.
Dual-Sim
PNC550 supports dual-card and dual-standby. This makes it not only the PoC (PTT over Cellular) but also a smartphone. Based on 2G/3G/4G/Wi-Fi.
HD Camera
13MP rear camera and 8MP front camera provide customer with greater possibilities of image and video services.
Functions
Unified Management Platform
Smart MDM provides unified management of PNC550. It supports firmware upgrade, AAP push and installation remotely, and also allows management of authority for users. SmartMDM supports authentication and data encryption.
PoC Solution
PNC550 can implement versatile voice, video and data services over the public network. The dedicated PTT design make it easy to initiate instant call anytime and anywhere.
5-Inch HD Multi-touch display
5-inch multi-touch Gorilla Glass display with 1080 x 720 WVGA resolution can be used outdoors in direct sunlight.
NFC Function
The built-in NFC module provides NFC related functions such as information query, authentication, identification, inspection etc.
Inclusive System
Integrated with the Android 8.1 system, PNC550 provides higher compatibility and security performance. It can support multiple applications. Open API and SDK allow third party development of customised applications.
Accessories for PNC550
Included as standard with PNC550
Systems that work with PNC550
Technical Specifications
Standards and Frequencies
- LTE
- FDD LTE: B1/B5/B7/B8/B20/B26/B27/B28 TDD LTE: B38/ B39/B40/B41
- WCDMA
- B1/B3/B5/B8
- GSM
- 850/950/1800/1900MHz
- WLAN
- 2.4GHz, 802.11 b/g/n
- Bluetooth
- BT 4.1
- Positioning System
- GPS (AGPS), Beidou/Glonass/ Galileo/Network
- NFC
- Support
Support Audio and Video
- Audio Format
- MP3: aacplus, eAAC, AMR-NB, AMR-WB, G-711, Windows media audio, (WMA) 9/10 Pro
- Video and Image Format
- H.263, PO, H.264, BP/MP/ HP, MPEG-4, SP/ASP, DivX, 4x/5x/6x, VP8, VP9, H.265, MP, JPG, GIF, BMP, PNG,WEbP
Environmental
- Dust and Water proof
- IP68
- Military Standard
- MIL-STD-810G
- Drop Resistance
- 1.2m
