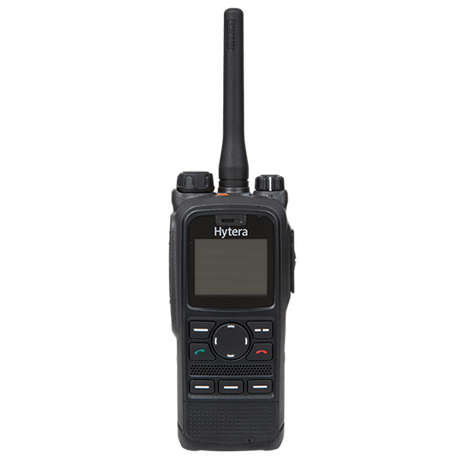

PT560H
Highlights

Versatile Operation
The PT580H Plus S provides rapid access to the TETRA radio network in trunked mode (TMO), communicates between radios in direct mode (DMO) and can also boost the area of operation via DMO Repeater mode (licensed).
Safer Workforce
Protecting the user with lone worker, man down alarm and emergency alarm features.
Dustproof and Waterproof
IP67 rating for ingress protection, withstanding submersion in 1 metre of fresh water for a duration of up to 30 minutes.
Voice and Data Services
Precise positioning is available due to the integrated GPS function, as well as many other voice and data services according to the TETRA standard.
Clear Communication
The PT580H Plus features an advanced audio chip with the latest noise cancelling capability. Users working in noisy environments therefore benefit from excellent audio quality.
Functions
Versatile Voice Calls
Supporting various voice call types, including; Private Call, Group Call, All Call and Emergency Call.
Lone Worker
The lone worker feature uses a timer in the radio to measure inactivity. If the timer expires, a warning is issued, and if there is no response to that, the alarm is triggered.
Bluetooth Audio
Wireless connectivity to audio devices to improve user experience.

GPS
Global Positioning System, enabling location based services to improve safety and control.
Man Down
The man down feature will let you know if the radio has been tilted past a certain angle. This may happen for instance if the radio user has fallen over or is unconscious or injured. The alarm will be triggered after a warning is issued to the user.
Accessories for PT560H
Audio
Charger & Power
Car Kit
Maintenance
Carrying
Installation
Battery
Antenna
Systems that work with PT560H
TETRA Applications
TETRA Systems
Technical Specifications
General
- Frequency Range
- F3 : 380 - 430MHz, F4 : 405 - 475MHz, F5 : 806-870 MHz
- Channel Spacing
- 25KHz
- Available Battery
- 2000mAh Li-ion (standard), 2500mAh Li-ion (option)
- Battery Life
- 1800mAh (20hrs), 2500mAh (27hrs)
- Dimensions(W×H×D)
- 127.5 x 55 x 39.5mm
- Weight
- 368g (with 2000mAh battery and antenna)
- Display
- 160 x 128 pixels, 65536 colors 1.8 inch, 4 rows

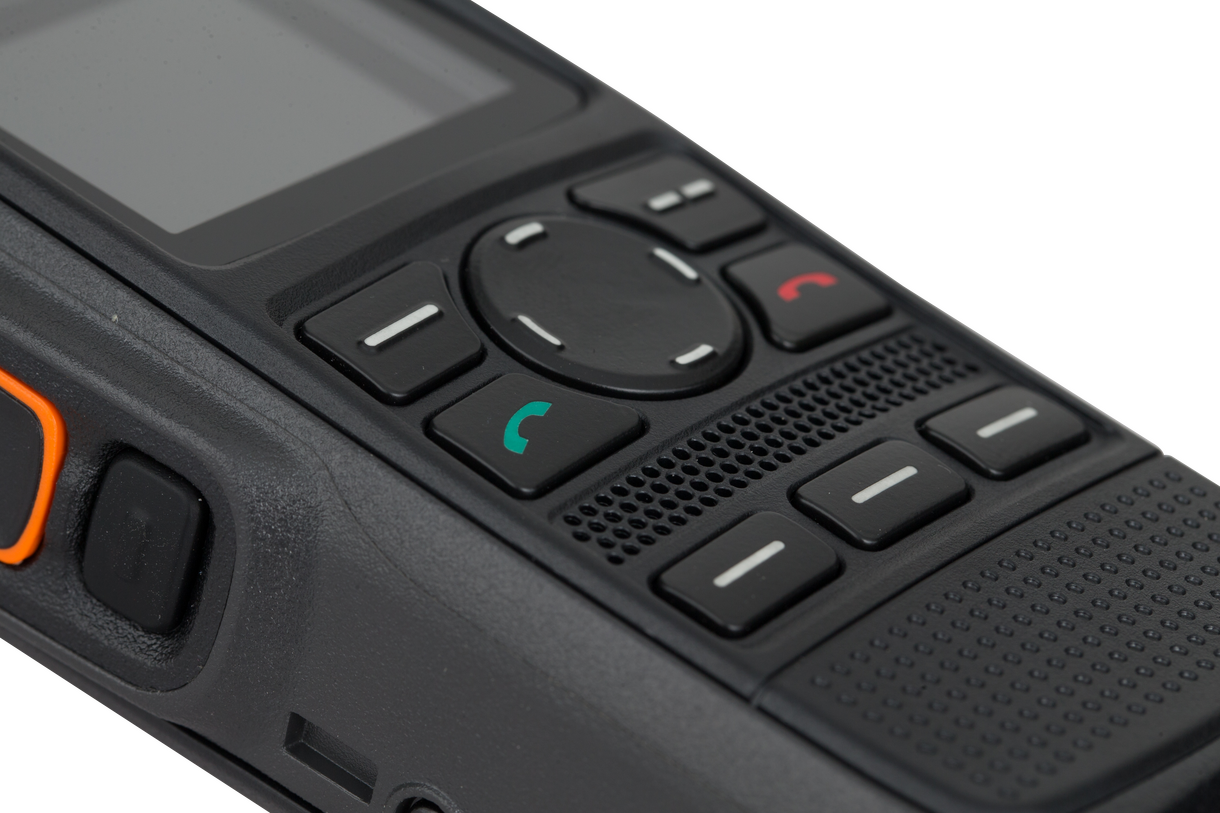

- Keypad
- Partial Keypad
- Programmable Buttons
- 8
User Interface
- Display
- 1.8inch,160*128pixels,65536colors
- Talk Group-TMO
- 6000
- Talk Group-DMO
- 4000
- Telephone book
- 2000
- Inbox
- 400
- Outbox
- 50
- Folder-TMO
- 200
- Folder-DMO
- 50
- State Message
- 200
Transmitter Specification
- RF power
- Max 3W(1.8W for 806-870MHz), 4 steps of 5dB
Receiver Specification
- Sensitivity (Static)
- -116dBm (typical -118dBm)
- Sensitivity (Dynamic)
- -107dBm (typical -109dBm)
- Audio Power Output
- 2.0W
Environmental Specifications
- Dust & Water Intrusion
- IEC60529, IP68
- Drop, Shock & Vibration
- MIL-STD- 810 G; ETS 300 019-1-7 5M3
